Servo Coil Winding Wire Tensioner High Efficiency Energy Saving

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Model Number: SFD2000-CL

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$500-US$1000per set

Packaging Details: Carton with foam

Delivery Time: 3-15 working days

Payment Terms: T/T, Western Union ,Paypal

Supply Ability: 2000 set per month

Get Best Price
Highlight:

Coil Winding Wire Tensioner High Efficiency

,

Energy Saving Coil Winding Tensioner

,

Servo Coil Winding Wire Tensioner

Power Supply:
DC24-48V
Wire Speed:
20m/s
Feature:
Feed Wire Automaticly
Tension Range:
300-2000g
Application:
Winding Machine,transformer Coil Winding,toroidal Inductor,Wire Guide,toroidal Transformer And So On
Warranty:
12 Months
Minimum Order Quantity:
1 Piece
Winding Motor:
Servo Motor
Condition:
New
Usage:
Coil Winding Tensioner,winnd Transformer Coils
Power Supply:
DC24-48V
Wire Speed:
20m/s
Feature:
Feed Wire Automaticly
Tension Range:
300-2000g
Application:
Winding Machine,transformer Coil Winding,toroidal Inductor,Wire Guide,toroidal Transformer And So On
Warranty:
12 Months
Minimum Order Quantity:
1 Piece
Winding Motor:
Servo Motor
Condition:
New
Usage:
Coil Winding Tensioner,winnd Transformer Coils
Servo Coil Winding Wire Tensioner High Efficiency Energy Saving

Coil Winding Wire Tensioner High Efficiency, Energy Saving Servo Tension SFD2000-CL Wire Diameter 0.25-0.8mm ,

SERVO WIRE TENSIONERS - WITH TWO STAGE OF TENSION VALUE


Wire tension is one of the most critical parameters of any coil winding process, having an influence on product characteristics, particularly DC resistance of the wire. Wire tension control devices are therefore required to ensure constant wire tension as the wire speed changes during the coil winding process.

Selecting better tensioner provides a sophisticated winding machine with best performance.
Stabilized tensioner improves winding problems and enhances productivity. For example,

stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of

resistance, and increases credibility of the product.
Perfect layer winding leads to material cost cutting and easy adjustment. Therefore, time and cost

for machine maintenance can be decreased.
QIANHE Company has a wide range of tensioner types, from basic Magnetic type tensioners to

servo motor tensioners.





Products Introduction :



The SF series servo tensioner features pulse motor as the source of torque control torque, its sensitive and quick response feedback control system, providing precise, stable and consistent tension for high speed quality winding. Selected models of this series come with real-time tension measurement and display, provides a clear and convenient way to observe the winding tension, aiding in better control of product quality.



- High speed operation under high torque conditions, Stable tension

- Wide selection of wire travel speed, maximum 20 m/s





Features:

The servo tensioner uses a DC Servo Motor and a Drive as an active wire feeding mechanism.

Its mainfeatures are as following:
1, Follow the speed of the winding machine and actively wire feeding ;
2, DC Servo Motor with High Precision Encoder and Advanced Driving Technology:
A, High tracking accuracy, high tension stability, acceleration and deceleration up to 0.3s;
B, High speed, large torque, large tension range, simple selection;
C, High efficiency, energy saving and low power consumption, motor and drive work for a long time with
very low heating, no need heat dissipation;
D. Stable online measurement function;
E, It can directly adjust the parameters of the motor and the working angle of tension arm by connecting
the USB interface of tensioner with PC software. It is suitable for winding various coil products of various
winding machines.
3. The tension range is 2-2000 gf and the suitable diameter is 0.02-0.80 mm.





Servo Tension Controller

Applications

-Widely used in motor coil,drive coil,transformer coils,relay coils,voice coil,inductance,resistance wire,textiles and other equipment around the system.





Specification :

Part.No. Product Model Maximum wire speed Tension Stage Tension Scope Applied wire diameter Tension Rod
(g) (mm)
1 SF600 18m/s one stage 2-600 0.02-0.28

SF-1#

SF-2#

SF-3#
SF-4#

2 SF800 18m/s two stage 2-800 0.02-0.4
3 SFD2000 9m/s two stage 300-2000 0.2-0.8 SF-5#



Main parameters



Product Model Power Power Input Air Pressure Mounting Hole Weight Product Size
SF600 DC48V 100W / Ф 16mm 2.0kg 265*170*75(mm)
SF800 5kg/cm ² 2.5kg 310*170*85(mm)
SFD200 200W 3.7kg 350*195*90(mm)





The Product Electrical Characteristics
1, Power Supply:  24-48V
2, Rated Power:100W/200W
3, Rated Current:2.7A/5.5A;working current is less than 0.5A
4, Anti-reverse connection: can withstand 48V reverse connection; anti-surge;

can withstand 600V voltage1ms impact
5, Continuous working time: continuous



Picture Display:

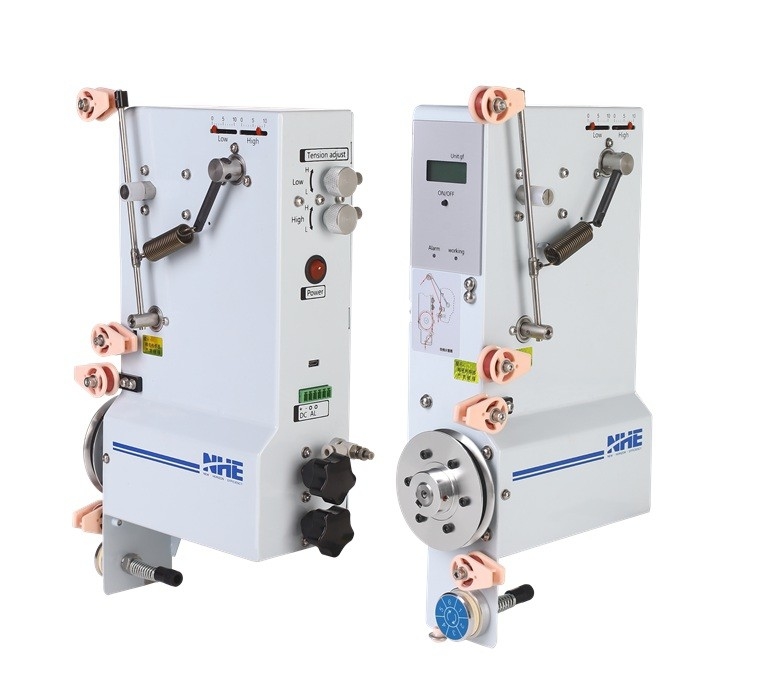

Servo Coil Winding Wire Tensioner High Efficiency Energy Saving 0

                                                    REAL -TIME TENSION DISPALY

Servo Coil Winding Wire Tensioner High Efficiency Energy Saving 1

                                                          NO TENSION DISPALY



Servo Coil Winding Wire Tensioner High Efficiency Energy Saving 2



Servo Coil Winding Wire Tensioner High Efficiency Energy Saving 3
