Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Model Number: W1515-3000-3500

Payment & Shipping Terms

Minimum Order Quantity: 20 pcs

Price: US$6.5-US$15 PER PCS

Packaging Details: Carton with box /foam

Delivery Time: 3-7 working days

Payment Terms: T/T, Western Union

Supply Ability: 50000 pcs per month

Get Best Price
Highlight:

wire guide tube

,

tungsten carbide tubing

Place Of Origin:
Hangzhou China
Material:
Tungsten Carbide
Hardness:
HRC90
Anti Bending degree:
Over 2300N/mm
Place Of Origin:
Hangzhou China
Material:
Tungsten Carbide
Hardness:
HRC90
Anti Bending degree:
Over 2300N/mm
Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding

Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding







We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil

winding nozzle for Nittoku coil  winding machine, CNC Automatic coil winding machine

 and other brand coil winding machines,.

There is description and features about the Tungsten Carbide Nozzle as following:

Tungsten Carbide nozzle is used on coil winding machine.it is made precisely of super

hard alloy and enjoys the hardness over HRA90.degree while the anti bending degree

reached over 2300N/mm.Two terminals and the inner and outlet are all receive mirror

surface treatment to ensure enameled wire makes no scrape. High hardness, resistance

to flexure, block and impact .


Key advantages of Tungsten Carbide Nozzle :

  • High Wear Resistance
  • Scratch-Proofing
  • Straightness and Stiffness
  •  Precise Exit Radii



Specification and description:



Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 W0202-2005-1505 15  2.0  0.5  0.2  0.2
2 W0202-2000-3300 33  * 2.0  * 0.2  0.2
3 W0202-3010-3015 30  15  3.0  1.0  0.2  0.2
4 W0202-3006-3010 30  10  3.0  0.6  0.2  0.2
5 W0202-3015-3015 30  15  3.0  1.5  0.2  0.2
6 W0202-3007-3508 35  3.0  0.7  0.2  0.2
7 W0303-3008-3012P 30  12  3.0  0.8  0.3  0.3
8 W0303-3012-3519 35  19  3.0  1.2  0.3  0.3
9 W0303-3008-4506 46  3.0  0.8  0.3  0.3
10 W0303-3020-3515 35  15  3.0  2.0  0.3  0.3
11 W0303-0800-3500 35  * 0.8  * 0.3  0.3
12 W0303-3018-4018 40  18  3.0  1.8  0.3  0.3
13 W0404-3010-3009 30  3.0  1.0  0.4  0.4
14 W0404-3007-4528 45  28  3.0  0.7  0.4  0.4
15 W0505-3012-4506T 45  3.0  1.2  0.5  0.5
16 W0606-3012-3520 35  20  3.0  1.2  0.6  0.6
17 W0606-3016-4010T 40  10  3.0  1.6  0.6  0.6
18 W0808-3018-3518 35  18  3.0  1.8  0.8  0.8
19 W0808-3018-3010 30  10  3.0  1.8  0.8  0.8
20 W1212-3022-3010 30  10  3.0  2.2  1.2  1.2

All size can be customized according to customer requirements





The the measurements drawing as follow please confirm your nozzles size according

 to your winding machine and coil products.



Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding 0

Picture show :

Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding 1

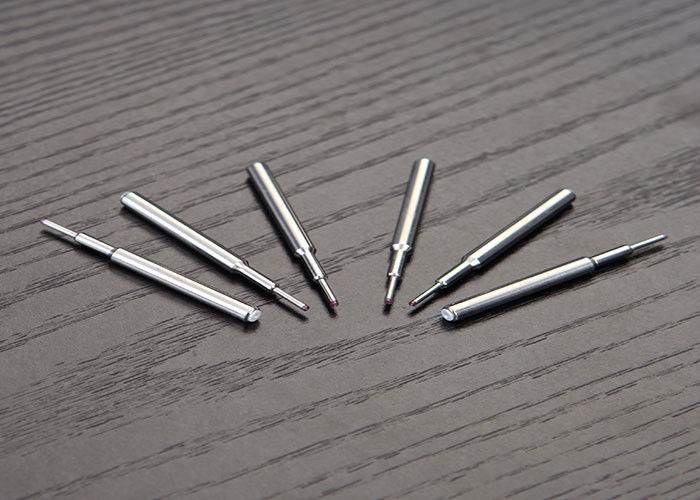

                                                  Tungsten Carbide Coil Winding Nozzle

Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding 2

                                                        Tungsten Carbide Nozzle



       Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding 3

                                           Nozzle inner bore with grinding effect


Flexure Resistance Tungsten Carbide Nozzle with Precision Grinding 4
                                                            Coil Winding Nozzle Inner Package
