Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Model Number: W0202-3006-3005

Payment & Shipping Terms

Minimum Order Quantity: 20 pcs

Price: US$6.5-US$15 PER PCS

Packaging Details: Carton with box /foam

Delivery Time: 3-7 working days

Payment Terms: T/T, Western Union

Supply Ability: 50000 pcs per month

Get Best Price
Highlight:

industrial nozzle

,

tungsten carbide tubing

Place Of Origin:
Hangzhou China
Material:
Tungsten Carbide
Hardness:
HRC90
Anti Bending degree:
Over 2300N/mm
Place Of Origin:
Hangzhou China
Material:
Tungsten Carbide
Hardness:
HRC90
Anti Bending degree:
Over 2300N/mm
Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder

Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder





Coil Winding Nozzles / Wire Guide Tubes With Precision Grinding



We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil

winding nozzle for Nittoku coil  winding machine, CNC Automatic coil winding machine

 and other brand coil winding machines,.

There is description and features about the Tungsten Carbide Nozzle as following:

Tungsten Carbide nozzle is used on coil winding machine.it is made precisely of super

hard alloy and enjoys the hardness over HRA90.degree while the anti bending degree

reached over 2300N/mm.Two terminals and the inner and outlet are all receive mirror

surface treatment to ensure enameled wire makes no scrape. High hardness, resistance

to flexure, block and impact .


Key advantages of Tungsten Carbide Nozzle :

  • High Wear Resistance
  • Scratch-Proofing
  • Straightness and Stiffness
  •  Precise Exit Radii





The the measurements drawing as follow please confirm your nozzles size according

 to your winding machine and coil products.



Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder 0



All size can be customized according to customer requirements



Picture show :

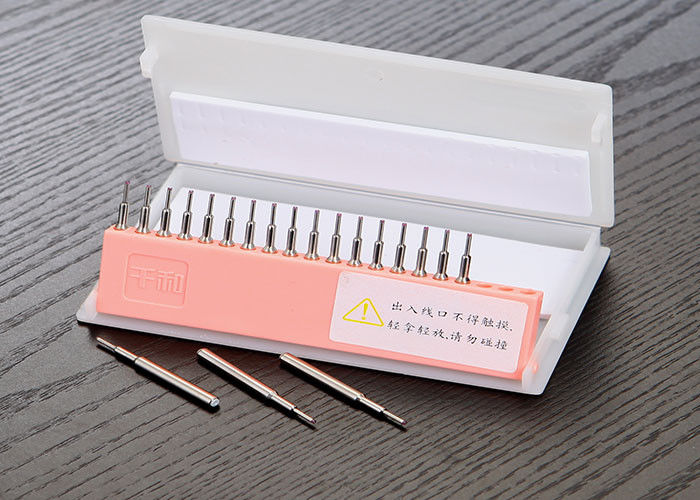

Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder 1

                                                  Tungsten Carbide Coil Winding Nozzle

Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder 2

                                                                 Ruby Nozzle

Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder 3

                                                                    Ceramic Nozzle

Straight Tungsten Carbide Nozzle for CNC Automatic Coil Winder 4
                                                            Coil Winding Nozzle Inner Package
