Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm

China Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm supplier
Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm supplier Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm supplier Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm supplier Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm supplier

Large Image :  Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm

Product Details:

Place of Origin: HANGZHOU CHINA
Brand Name: QIANHE
Model Number: QH-MTAS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$100-US$500
Packaging Details: Carton with Foam
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 set per month
Contact Now
Detailed Product Description
Place Of Origin: Hangzhou China Brand Name: Qianhe
Color: White And Beige Package Size: 210mmX150mmX160mm
PProduct Weight: 0.50 Kg Type: Horizontal Type
Mertials: Alloy Resin Function: Tension Control



Low-Frequency Tranformers  coil Winder Tensioner Magmetic Wire Tensioner for fine wire Ф0.08-Ф0.40mm



Hangzhou Qianhe Precision Machinery Co.,Ltd



 Qianhe  is a professional manufacturer for coil winding tensioner,  We offer  Magnetic tensioner,electronic tensioner and servo tensioner

 for coil winding machine with best quality and the most  competitive price in china.

there is description about Magnetic tensioner as following:



Key advantages of Magnetic wire tensioners:



These magnetic tensioners use a device containing a permanent magnet as a

 non-contact method of generating a variable resistance to rotation of the main

wheel of the tensioner, thus maintaining wire tension at the set value for longer

periods than their mechanical counterparts with greatly reduced requirement for

adjustment.

  • Polished ceramic eyelets and guide rollers at each point of contact protect   the  insulating enamel from mechanical damage.
  • The performance of these magnetic wire tensioners is exceptional given the low    cost,
  •  providing outstanding value for money.
  • Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

Specification :



Products Series  Model Tension Scope Applied wire diameter Tension Rod
(g) (mm)
MTA Series      (horizontal type) QH-MTASS 5-130 0.025-0.12 TR-1#
QH-MTA300S 14-400 0.06-0.25 TR-5#
QH-MTAS 30-800 0.08-0.40 TR-6#
QH-MTAM 300-1500 0.35-0.80 TR-16#
QH-MTAL 500-2500 0.40-1.00 TR-21#


Hanging line diagram

Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm

Tensioner test conditions :

Line speed is 15M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.



Key features of Type MTC300S :

  • Tension Scope :30-8000g
  • Applied wire diameter : 0.08-0.40
  • Tension Rod :  TR-6#

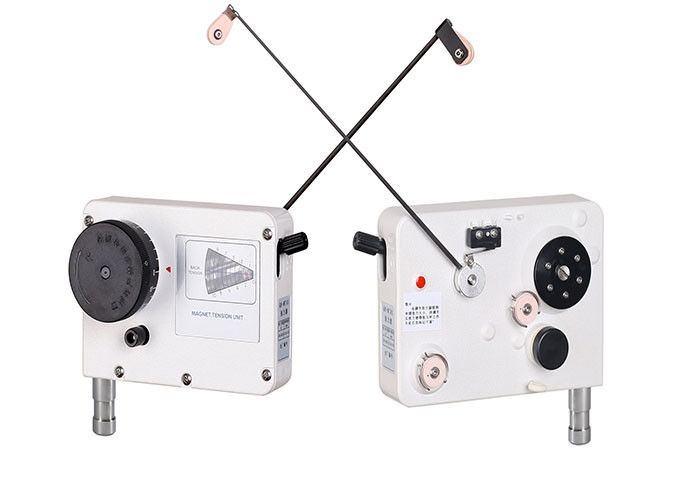

Picture show:

Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm

                                                                                 MTAS

Low Frequency Tranformers Coil Winder Motorcycle Chain Tensioner For Fine Wire 0.40mm

                                                             Coil Winding Machine Tensioner
