Vertical Magnetic Wire Tensioner For Transformer Machine Tension Controller

Product Details

Place of Origin: HANGZHOU CHINA

Model Number: QH-MTCS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$100-US$500

Packaging Details: Carton with Foam

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union

Supply Ability: 5000 set per month

Get Best Price
Highlight:

coil winding parts

,

Coil Winding Tensioner

,

Magnetic Wire Tensioner Vertical

Brand Name:
Qianhe
Place Of Origin:
Hangzhou China
Color:
White And Beige
Package Size:
210mmX150mmX160mm
PProduct Weight:
0.50 Kg
Type:
Vertical Type
Mertials:
Alloy Resin
Function:
Tension Control
Brand Name:
Qianhe
Place Of Origin:
Hangzhou China
Color:
White And Beige
Package Size:
210mmX150mmX160mm
PProduct Weight:
0.50 Kg
Type:
Vertical Type
Mertials:
Alloy Resin
Function:
Tension Control
Vertical Magnetic Wire Tensioner For Transformer Machine Tension Controller



Vertical type Magnetic Wire Tensioner  for Transformer Machine tension controller for fine wire Ф0.08-Ф0.40 mm



Hangzhou Qianhe Precision Machinery Co.,Ltd



 Qianhe  is a professional manufacturer for coil winding tensioner,  We offer  Magnetic tensioner,electronic tensioner and servo tensioner

 for coil winding machine with best quality and the most  competitive price in china.

there is description about Magnetic tensioner as following:



Key advantages of Magnetic wire tensioners:



These magnetic tensioners use a device containing a permanent magnet as a

 non-contact method of generating a variable resistance to rotation of the main

wheel of the tensioner, thus maintaining wire tension at the set value for longer

periods than their mechanical counterparts with greatly reduced requirement for

adjustment.

  • Polished ceramic eyelets and guide rollers at each point of contact protect   the  insulating enamel from mechanical damage.
  • The performance of these magnetic wire tensioners is exceptional given the low    cost,
  •  providing outstanding value for money.
  • Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

Specification :



Products Series  Model Tension Scope Applied wire diameter Tension Rod
(g) (mm)
MTC Series      (vertical type) QH-MTCSS 5-130 0.025-0.12 TR-1#
QH-MTC300S 14-400 0.06-0.25 TR-5#
QH-MTCS 30-800 0.08-0.40 TR-6#



Hanging line diagram

Vertical Magnetic Wire Tensioner For Transformer Machine Tension Controller 0

Tensioner test conditions :

Line speed is 15M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.



Key features of Type MTC300S :

  • Tension Scope :30-800g
  • Applied wire diameter : 0.08-0.40
  • Tension Rod :  TR-6#

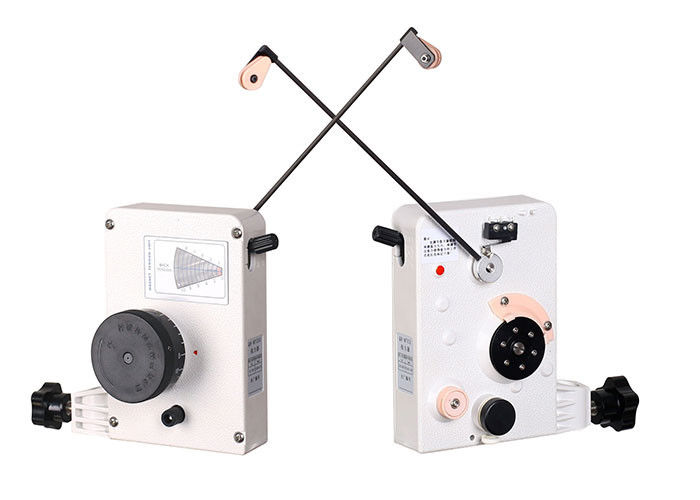

Picture show:

Vertical Magnetic Wire Tensioner For Transformer Machine Tension Controller 1

                                                                                 MTCS

Vertical Magnetic Wire Tensioner For Transformer Machine Tension Controller 2

                                                             Coil Winding Machine Tensioner
