CNC Full Automatic Coil Winder Tensioner 0.08-0.40mm Wire Diameter

Product Details

Place of Origin: HANGZHOU CHINA

Brand Name: QIANHE

Model Number: QH-MTAS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$100-US$500

Packaging Details: Carton with Foam

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union

Supply Ability: 5000 set per month

Get Best Price
Highlight:

electronic tensioner

,

coil winding machine tensioner

,

Full Automatic Coil Winding Tensioner

Model:
QH-MTAS
Tension Scope:
30-800g
Wire Diameter:
0.08-0.40mm
Product Weight:
0.55kg
Type:
Horizontal Type
Mertials:
Alloy Resin
Feature:
Using Permanent Magnet
Suit:
High And Normal Speed Winding
Application:
Coil Winding Machine Wire Tension Control
Packaging Details:
Carton With Foam
Model:
QH-MTAS
Tension Scope:
30-800g
Wire Diameter:
0.08-0.40mm
Product Weight:
0.55kg
Type:
Horizontal Type
Mertials:
Alloy Resin
Feature:
Using Permanent Magnet
Suit:
High And Normal Speed Winding
Application:
Coil Winding Machine Wire Tension Control
Packaging Details:
Carton With Foam
CNC Full Automatic Coil Winder Tensioner 0.08-0.40mm Wire Diameter

Hangzhou Qianhe Precision Machinery Co.,Ltd



We are specicalized in coil winding mahince tensioners,

Such as Magnetic tensioner,electronic tensioner and servo tensioner

with high quality and the most competitive price in china.

Our wire tensioners can be used on almost any brand of coil winding machine,

and most models can be fitted with a microswitch for detection of broken winding wires

on request .



There is description about Magnetic tensioner as following:



Key advantages of Magnetic wire tensioners:

These magnetic tensioners use a device containing a permanent magnet as a

non-contact method of generating a variable resistance to rotation of the main

wheel of the tensioner, thus maintaining wire tension at the set value for longer

periods than their mechanical counterparts with greatly reduced requirement for

adjustment.

  • The arm position provides feedback to the system, adjusting the magnetic resistance device to regulate and maintain constant tension during the winding cycle.
  • Wool Felt provide pre-tension and remove dust and other debris from the winding wire.
  • Polished ceramic eyelets and guide rollers at each point of contact protect the insulating enamel from mechanical damage.
  • The performance of these magnetic wire tensioners is exceptional given the low cost,providing outstanding value for money.
  • Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

Specification :



Products Series  Model Tension Scope Applied wire diameter Tension Rod
(g) (mm)
MTA Series      (horizontal type) QH-MTASS 5-130 0.025-0.12 TR-30#
QH-MTA300S 14-400 0.06-0.25 TR-31#
QH-MTAS 30-800 0.08-0.40 TR-32#
QH-MTAM 300-1500 0.35-0.80 TR-16#
QH-MTAL 500-2500 0.40-1.00 TR-21#


Hanging line diagram

CNC Full Automatic Coil Winder Tensioner 0.08-0.40mm Wire Diameter 0

Tensioner test conditions :

Line speed is 15M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.



Key features of Type MTC300S :

  • Tension Scope :30-800g
  • Applied wire diameter :0.08-0.40mm
  • Tension Rod :  TR-32#

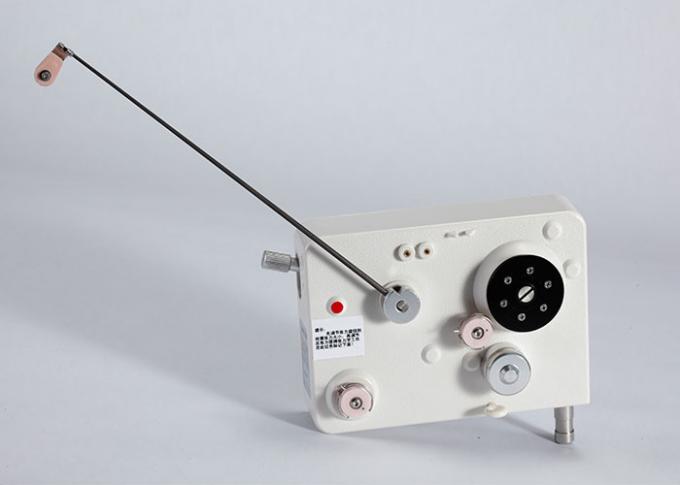

Picture show:

CNC Full Automatic Coil Winder Tensioner 0.08-0.40mm Wire Diameter 1

CNC Full Automatic Coil Winder Tensioner 0.08-0.40mm Wire Diameter 2



CNC Full Automatic Coil Winder Tensioner 0.08-0.40mm Wire Diameter 3

                                                                       QH-MTAS
