Home > products > Ceramic Wire Guide Pulley > Caged Ceramic Pulley QH005 Wire Guide Pulley Ceramic Wire Guide

Caged Ceramic Pulley QH005 Wire Guide Pulley Ceramic Wire Guide

Product Details

Place of Origin: HANGZHOU

Brand Name: QIANHE

Model Number: QH 005

Payment & Shipping Terms

Minimum Order Quantity: 1piece

Price: US$1.0-6.0 per pcs

Packaging Details: Carton with Foam

Delivery Time: 3-7working days

Payment Terms: T/T, Western Union

Supply Ability: 50,000 pcs per month

Get Best Price
Highlight:

Ceramic wire guide

,

wire guide pulley

Materials:
99%AL203 With Steel Ball
The Hardness:
Above HRA88
Density:
3.85g/cm2
Function:
Prevent The Wire Jumping Out
Polish:
Fine Polish Degree Ra0.2
Bearing::
High Speeding Bearing
Color:
Pink & Red & White
Screw Dia:
M4
Materials:
99%AL203 With Steel Ball
The Hardness:
Above HRA88
Density:
3.85g/cm2
Function:
Prevent The Wire Jumping Out
Polish:
Fine Polish Degree Ra0.2
Bearing::
High Speeding Bearing
Color:
Pink & Red & White
Screw Dia:
M4
Caged Ceramic Pulley QH005 Wire Guide Pulley Ceramic Wire Guide

Pink Caged Ceramic Pulley , Precision Coil Winding Tensioner Accessories





We offers high quality coil winding Caged ceramic pulley, wire guide pulley

(wire jump preventer ) with competitive price in China.



Coil winding Caged Ceramic Guide pulley (wire jump preventer) is to prevent the wire

 jumping out from it is route.

The wire jump preventer (QH001~QH007 series) is used for a radical change of direction

and adequate guidance and prevent the wire jumping during the winding process in coil

winding machine. The precision ceramics circle inside has an ultra fine polishing degree

Ra0.2. There is a high  speed bearing in this porcelain circle which can control the sliding

distance between enameled wire and the circle under 0.2mm, protect the film and ensure

the enameled wire jumping in a very small scope to stabilized the tension.



Production Description :



Material:                  99%AL203

The hardness:         Above HRA88

Density:                   3.85g/cm2

Function:                 Prevent the wire jumping out

Polish:                     Fine Polish degree Ra0.2

Bearing:                  High speeding bearing

Color:                      Pink & Red





Size Chart :Caged Ceramic Pulley QH005 Wire Guide Pulley Ceramic Wire Guide 0

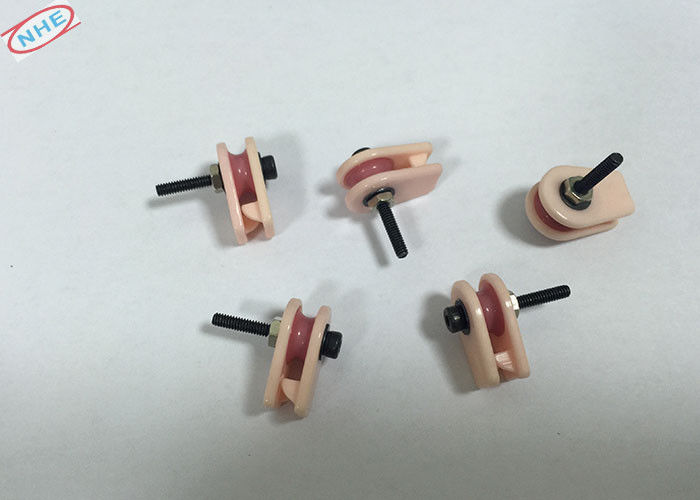

Picture show :

Caged Ceramic Pulley QH005 Wire Guide Pulley Ceramic Wire Guide 1
