High Precision Tungsten carbide coil winding nozzles for automatic winding machine

China High Precision Tungsten carbide coil winding nozzles for automatic winding machine supplier
High Precision Tungsten carbide coil winding nozzles for automatic winding machine supplier High Precision Tungsten carbide coil winding nozzles for automatic winding machine supplier High Precision Tungsten carbide coil winding nozzles for automatic winding machine supplier High Precision Tungsten carbide coil winding nozzles for automatic winding machine supplier

Large Image :  High Precision Tungsten carbide coil winding nozzles for automatic winding machine

Product Details:

Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: Be made according to dimensions drawing.

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Packaging Details: carton with bag
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Model NO.: 6-0.7-12 Material: Hard Alloy / Carbide Steel
Size:: According To Customer Request Drawing Hardness: Hardness Up To Hra90 Or More
Precision: High Precision Advantage: With High Rigidity And Hardness, Not Easy To Bend
Automatic Grade: Automatic Customized: Customized

Motor Nozzle :



We are professional Manufacturer for Motor coil winding nozzles,wire guide tubes,

wire guide needles,wire guide eyelets with competitive price in china.



The product adopts hard alloy or carbon steel heat treatment and receives precision grinding

and polishing by professional processing equipment .Therefore, it boasts high resistance to flexure

and to wear and is extensively applied in fields of series, fan, micro-motor and motor for wire coiling

of stator and rotor.



Superior and inferior quality of alloy wire nozzle:

1 Nozzle orifice finish:
At the junction of its location, hole and arc angle, by visual method is unable to see, only with the

high magnification magnifier to observe the side, if there is an obvious mark junction hole and

transition arc angle, then the result is brought about by it scratch the enameled wire, if the quality

of the nozzle, at the junction of the inner hole and the arc angle it is a natural excessive, no transfer

of marks.

2 In the hole:
It is the quality of the product is also very crucial in the process of product winding in the inner hole

of the enameled wire is in the mouth of the online beating state, if the internal hole grinding processing

is not good, so the scraped line and then the inevitable worth to remind is, now on the market a lot in

hole alloy wire mouth is without grinding precision or simple rough machining.
3 Hole size precision:
Precision machining line mouth, its inner hole accuracy can be controlled within 0.01mm, if the hole

size is greatly small, break phenomenon often occurs, even the winding insulation failure or interturn

short circuit is not hard to explain why.

4 Installation size precision

According to the consistency of the packing size is necessary, if it is hard to put into a small equipment fixture, it is easy to fall out of fixture and influence adjustment precision.

5 head and tail shape:
R line shape is a key part of the R mouth of the head and tail, R is too large or too small will influence

the quality of products and can withstand the tension.





Nozzle Drawings for example :

High Precision Tungsten carbide coil winding nozzles for automatic winding machine



Above is just for example all size can be customized according to customer’s special dimensins drawing requirements .

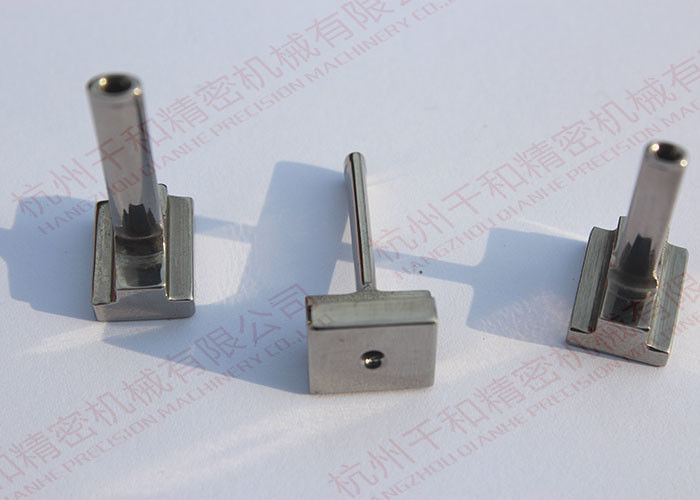

Picture show :

High Precision Tungsten carbide coil winding nozzles for automatic winding machine



High Precision Tungsten carbide coil winding nozzles for automatic winding machine





Why do you choose us?
1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of experience,

we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging, delivery.

We are sure we produce all the goods. And the quality is 100% rest assured. Many customers are

very happy to cooperate with us, because we can provide a more competitive price as a factory.
3. The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified can

be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before

the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
