White Coil Winding Tensioner Working In Full Automatic Production Line Of Coil

Product Details

Place of Origin: HANGZHOU CHINA

Brand Name: QIANHE

Model Number: QH-MTA300S

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$100-US$500

Packaging Details: Carton with Foam

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union

Supply Ability: 5000 set per month

Get Best Price
Highlight:

Automatic Production Line Electronic Tensioner

,

White Coil Winder Tensioner

,

White Coil Winding Tensioner

Model:
QH-MTA300S
Tension:
14-400g
Wire:
0.06-0.25mm
Stallation:
Φ10 Mounting Stud
Wire Speed:
15m/s
Application:
Coil Winding Machine Wire Tension Control
Packaging:
Carton With Foam
HS Code:
8479909090
Model:
QH-MTA300S
Tension:
14-400g
Wire:
0.06-0.25mm
Stallation:
Φ10 Mounting Stud
Wire Speed:
15m/s
Application:
Coil Winding Machine Wire Tension Control
Packaging:
Carton With Foam
HS Code:
8479909090
White Coil Winding Tensioner Working In Full Automatic Production Line Of Coil


Detailed Product Description:
Magnetic Tension MTA Series Magnetic Tensioner is used on coil winding machine by using permanent magnet,
tension is generated to the damp wheel. The non-contact mechanism design provides stable,consistence and precision tension to the wire. Excellence for both high and normal speed winding.


Key features of Type QH-MTA300S :


Place of origin:HAGNZHOU CHINA
Brand Name :QIANHE
Model :QH-MTA300S
Wire Range0.6-0.25mm
Tension Range14-400g
Horizontal typeΦ10 mounting stud
FeatureUsing Permanent Magnet
ApplicationCNC-Winding machine
Suit :High and normal speed winding
Tension test conditionwire sppeding 5m/s refer roundness Bobbin
Products size125mm*154mm*36.5mm
Weight0.5kg
Minimum order quantity1 piece
Packing detailsCarton with Foam
Dileryy time3-5 working days
Payment termsT/T,Western Union ,Paypal
Supply ability5000 pcs per month
CustomizedNon-Customized


We specializing in the production of coiling machine accessories. coil winding tungsten carbide nozzle,Hard alloy nozzle,ruby nozzle,wire guide nozzle,wire roller,wire guide pulley,ceramic eyelet guides,textile ceramic ,ceramic roller,roller guides,wire gudie roller,ceramic pulley,wire jump preventer,coil winding machine tensioner,Servo tensioner,magnetic tensioner,cylinder Tensioner,electronic tensioner,
Coil winding tensioner Magnetic Tensioner(tension control) is one of the vital parts in the coil winding process.It is used to ensure the consistency of the wire tension during the winding process.By using a tensioner,Wire Tension can be adujsted and pre-set to the require value according to the application so as to achieve appropriate winding condition,and to ensure the conformity of each coil’s technical parameters.

Application:
Full-automatic coil Winding Machine Wire Tension Control
Match with different winding machine such Nittoku ,Tanac ,Hongfa ,YEOU YUAN ,
and all the other automatic Winding machine production line of China suppliers .

Hanging line diagram
White Coil Winding Tensioner Working In Full Automatic Production Line Of Coil 0
Specification :


Products Series ModelTension ScopeApplied wire diameterTension Rod
(g)(mm)
MTA Series      (horizontal type)QH-MTASS5-1300.025-0.12TR-30#
QH-MTA300S14-4000.06-0.25TR-31#
QH-MTAS30-8000.08-0.40TR-32#
QH-MTAM300-15000.35-0.80TR-16#
QH-MTAL500-25000.40-1.00TR-21#


Picture show:

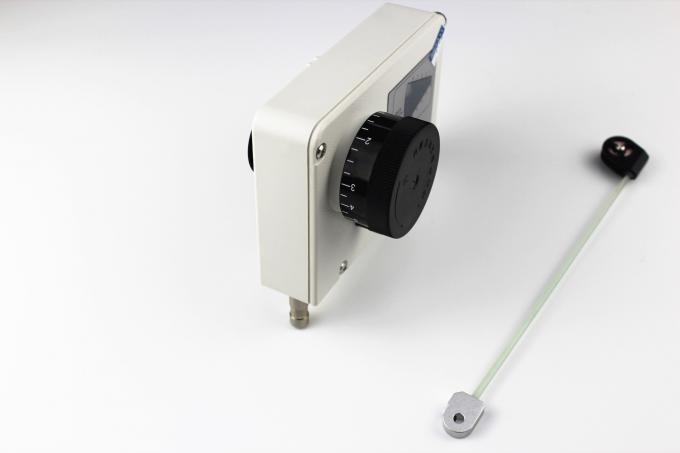

White Coil Winding Tensioner Working In Full Automatic Production Line Of Coil 1

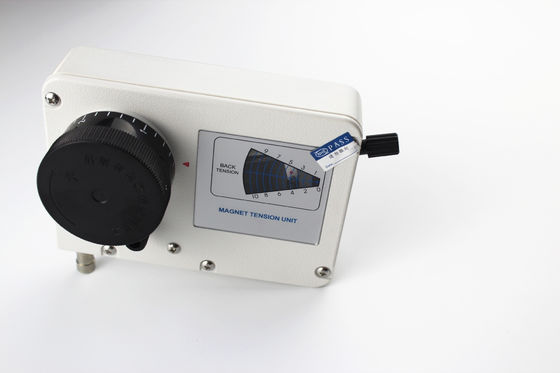

White Coil Winding Tensioner Working In Full Automatic Production Line Of Coil 2                                                                  QH-MTA300S

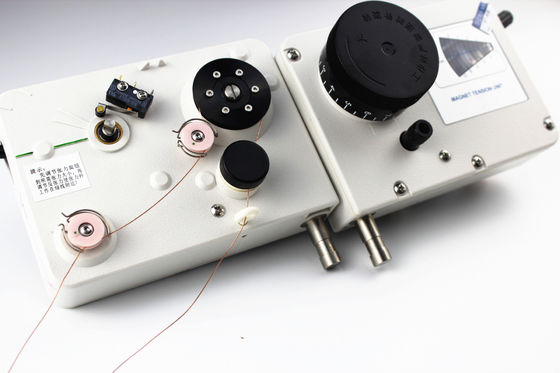

White Coil Winding Tensioner Working In Full Automatic Production Line Of Coil 3
                                                         Different models of QH-MTA Series
White Coil Winding Tensioner Working In Full Automatic Production Line Of Coil 4

                                    All products have to pass strict inspection before packing !


Advantages of this Coil Winding Magnetic Wire Tensioner
1. Excellence for both high and normal speed winding.
2. Stable and consistence tension control
3. Non wire breakage
4. longer service life and competive prices
