Home ProductsServo Tensioner

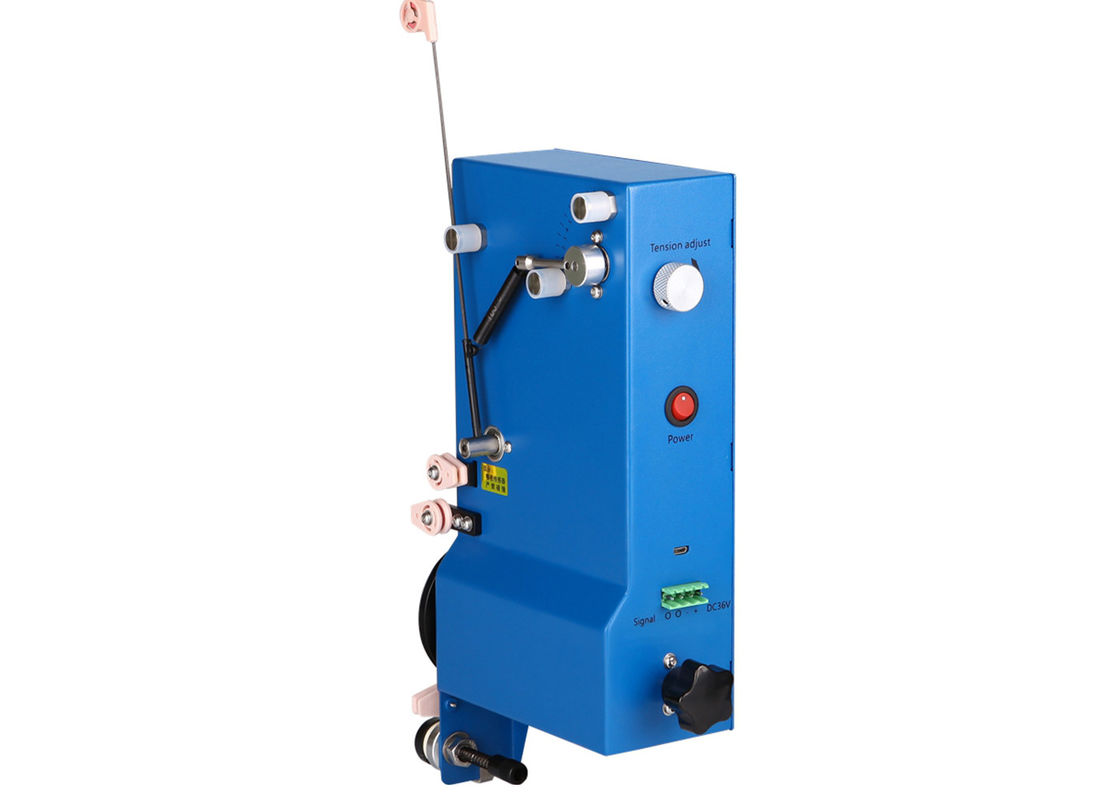

Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner

Good quality Magnetic Tensioner for sales
Good quality Magnetic Tensioner for sales
Very good business man. I will be back soon. He is quick to handle any problems you may have so feel safe to buy.

—— Jorge

The goods is better than my another supplier. Will give you more orders. Thanks !

—— Kylen Pillay

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Vikas

I'm Online Chat Now

Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner

China Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner supplier
Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner supplier Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner supplier Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner supplier Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner supplier

Large Image :  Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner

Product Details:

Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: SF50-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$500-US$1000per set
Packaging Details: Carton with foam
Delivery Time: 3-15 working days
Payment Terms: T/T, Western Union ,Paypal
Supply Ability: 500 set per month
Contact Now
Detailed Product Description
Power Supply: DC36-48V Electric Current:: 2.7A
Mounting Hole: Ф 16mm Wire Speed: 12m/s 18m/s / 20m/s
Feature: Feed Wire Automaticly Tension Range: Between 3 G To 800g By Changing Tension Spring
Wire Range: 0.02-0.4mm Weight: 2.5kg
Product Dimension: 293*130*62mm Application: Motor / Stator Electronic Transformer /Coil /Inductor





Description


The servo wire tension unit uses the wire feeding method for high speed winding control.

by replacing the spring to change its tension value, this product comes with tension feedback

stabilization system that can automatically tension stable equilibrium and with particular stable

tension and easy to adjust.

The feedback system will monitor the tension and make changes to the feeding speed to maintain

the set tension level even during rapid acceleration and to prevent any sudden change in the tension when winding non-round shaped coils.





Specifications



Product Name: Servo Tensioner SF Series



Place of Origin: Hangzhou China
Brand Name: QIANHE
Model: SF Series
Characteristic: Tension roller is fixed in front of
Wire Speeding: 12m/s,18m/s ,20m/s
Power: DC36V
Electric Current: 2.7A
Product size: 250mm*130mm*65mm
Weight: 1.9KG
Minimum Order Quantity: 1 Piece
Packaging Details: Carton With Foam
Delivery Time: 3 to 5 working days
Payment Terms: T/T,Western Union, Paypal
Supply Ability:

1000 Pcs per month



Poducts Feature:



1. Active wire feeding follow the speed of the winding machine;

2. SF series servo tensioner with online tension measurement display function, the display value is accurate and stable, the display unit is gf;

3. The DC servo motor with high-precision encoder has the following advantages over the servo

tensioner with stepper motor as the wire feeding mechanism:

4. high following accuracy, good tension stability, fast acceleration; low noise;

5. high speed, high torque, large tension range, simple selection;

6. high efficiency, energy saving, low power consumption, minimum operating current, low heat

generation of the motor and drive, no need to dissipate heat;

7. SF***-Ⅰ/ⅡSeries maximum wire speed 12m/s,18m/s,20m/s,tension range 3gf~800gf;

8. SF***-Ⅰis one stage tension setting tensioner;SF***-Ⅱ with two stage tension setting tensioner,

Two-stage tension control is realized by connecting the air supply with 0.5Mpa.



Servo Tension Controller

Applications

-Widely used in motor coil,drive coil,transformer coils,relay coils,voice coil,inductance,resistance wire,textiles and other equipment around the system.



Specification :



Servo Tensioner
Part.No Tensioner model Tension range (g) Wire range (mm) Tension bar model Spring Tension bar head structure Tension rod size
1 SF50-Ⅰ/II 3~50 0.02~0.08 SF-1# T1,T2,T3 Ceramic Eylet/Ruby ,Wire Roller(S) Φ0.8*Φ2*150
2 SF100-Ⅰ/II 25~100 0.05~0.12 SF-2# T3,T4,T5 Ruby / Wire Roller(M) Φ1.5*Φ2*200
3 SF200-Ⅰ/II 50~200 0.08~0.17 SF-3# T4,T5,T6 Ruby / Ceramic Pulley(005)/Wire Roller(M) Φ1.5*Φ4*200
4 SF400-Ⅰ/II 100~400 0.12~0.25 SF-4# T5,T6,T8 Ruby / Ceramic Pulley(005)/Wire Roller(L) Φ2.0*Φ4.0*150
5 SF800-Ⅰ/II 300~800 0.21~0.37 SF-5# T8,T9 Ceramic Pulley(S)/Wire Roller(L) Φ2.0*Φ4.0*120
6 SF2000-II 500~2000 0.3~0.8 TR-28# TDM-B/C/D Ceramic Pulley(M) Φ4.0*120



Main parameters



Product Model Power Power Input Air Pressure Mounting Hole Weight Product Size
SF--I DC36V 100W / Ф 16mm 2.0kg 290*130*58(mm)
SF--II 5kg/cm ² 2.5kg 293*130*62(mm)
ST2000-II 200W 3.7kg 350*195*90(mm)



Note: Please select according to the model list strictly, do not be used beyond the scope.



Dimensional drawing

Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner

Product Structure

Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner









Picture Display:





Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner

Servo Driven Wire Tensioner , High Precision Fine Wire Winding Tensioner



Delivery and shipping





Remark:

1.The standard type for wire speed is 12m/s, If any special requirement, please contact us to customized.

2.In the all series of servo tensioner, please confirm output of maximum tension scope. Such as: You need tension range is 1-100g, that can select SF100. According to definition of type. Kindly confirm if need properties of tension attenuator or display tension function and mounted position of the tension wheel. If no need other function,That can choose SF100.





Contact Details
HANGZHOU QIANHE PRECISION MACHINERY CO.,LTD

Contact Person: Csilla Wang

Send your inquiry directly to us (0 / 3000)
