DC Motors Transformers Relays Coils Magnetic Tensioner

DC Motors Transformers Relays Coils Magnetic Tensioner
DC Motors Transformers Relays Coils Magnetic Tensioner DC Motors Transformers Relays Coils Magnetic Tensioner DC Motors Transformers Relays Coils Magnetic Tensioner DC Motors Transformers Relays Coils Magnetic Tensioner

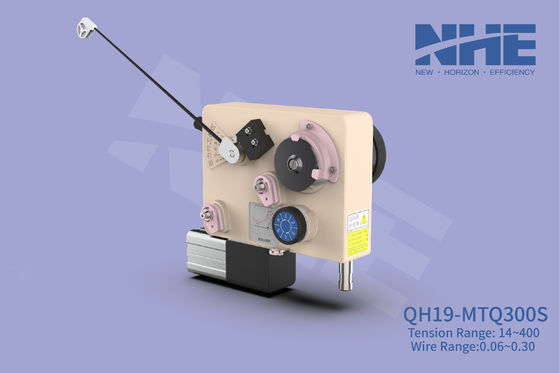

Large Image :  DC Motors Transformers Relays Coils Magnetic Tensioner

Product Details:

Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: QH19-MTQ300S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$ 1- US$300
Packaging Details: Carton with foam
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union ,paypal
Supply Ability: 5000 set per month
Detailed Product Description
Condition: New Materials: Alloy Resin
Type: Horizontal Wire Range: 0.06-0.25mm
Tension Range: 14-400gf Minimum Order Quantity: 1 Piece,
Warranty: 12 Months Wire Tensioner Coil Winding Application: Winding Machine, Transformer Coil Winding, Toroidal Inductor, Wire Guide, Toroidal Transformer And So On
Function: Tension Control H.S CODE: 8479909090
High Light:

Coils Magnetic Tensioner

,

Relays Magnetic Tensioner

,

Transformers Magnetic Tensioner

Magnetic Tensioner :
Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance.Stabilized tensioner improves winding problems and enhances productivity.For example, stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of resistance,
and increases credibility of the product.Perfect layer winding leads to material cost cutting and easy adjustment. Therefore,time and cost for machine maintenance can be decreased.
QIANHE Engineering has a wide range of tensioner types, from basic Magnetic type tensioners to servo motor tensioners.

Product Introduction
The MTQ series comes with a Tension Release mechanism to assist in special operation processes such as low tension termination, wire hooking etc.
The main pulley’s latest improved and upgraded design eliminated wire jumps and jams to ensure smooth winding. Mounting of wire break detection switch also been re-designed to improve its lifespan.
MTQ  tensioners come with back tension adjustments and a wire breakage detection switch; are suitable for a wide range of winding applications.
 Features:
Because of the non-contact method, stable tension can be obtained on a long-term basis.
2. Adoption of ferrite magnet, is a variation of the product is very low.
3. Have excellent follow-up with respect to high-speed winding.
4. To back tension can be adjusted freely, the windings of the square-shaped bobbin, it is also compatible with rapid change in the winding speed, does not have to be disconnected.
5. Tension is easy to set by direct reading scale with dial.
6.Disconnection of course, disconnection detection device which automatically stop the winding machine even if the wire is no longer is standard equipment.

 Basic Specifications of MTQ series:

Model


Wire Range (mm)Tension Range (g)Tension ArmWeight


QH19-MTQSS


0.025-0.124-100CX-1#,2#0.75
QH19-MTQ300S


0.06-0.25


14-400CX-3#,4#,5#0.90
QH19-MTQS


0.1-0.50


50-900CX-6#,7#0.95
QH19-MTQM


0.25-0.80


300-1500CX-8#1.18


QH19-MTQL


0.3-1.0

400-2000CX-8#1.18
QH-MTLL


0.50-1.50


1000-4000*3.5

Wire speed is 10m/s, instant start ,stop the continuous line ,stable tension is ± 1%

Hanging Line Diagram :

DC Motors Transformers Relays Coils Magnetic Tensioner 0

Picture show:
DC Motors Transformers Relays Coils Magnetic Tensioner 1

DC Motors Transformers Relays Coils Magnetic Tensioner 2



DC Motors Transformers Relays Coils Magnetic Tensioner 3

DC Motors Transformers Relays Coils Magnetic Tensioner 4
