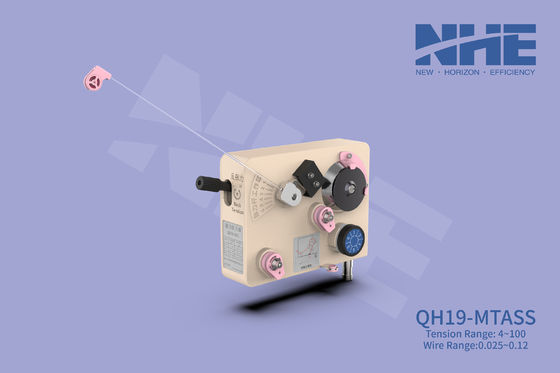

Fine 0.025mm 0.12mm Coil Winding Wire Tensioner

Fine 0.025mm 0.12mm Coil Winding Wire Tensioner
Fine 0.025mm 0.12mm Coil Winding Wire Tensioner

Large Image :  Fine 0.025mm 0.12mm Coil Winding Wire Tensioner

Product Details:

Place of Origin: HANGZHOU CHINA
Brand Name: QIANHE
Model Number: QH19-MTASS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$1-US$500
Packaging Details: Carton with Foam
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 set per month
Detailed Product Description
Tension Scope: 4-100g Applicable Wire Diameter: 0.025-0.12mm
Suit: High And Normal Wire Speed Winding Packaging Details: Carton With Foam
Weight: 0.6kg Minimum Order Quantity: 1 Piece
Warranty: 12 Months Wire Tensioner Coil Winding Installation: Horizontal With 10mm Mounting Stud
Condition: New
High Light:

0.12mm coil winding wire tensioner

,

fine coil winding wire tensioner

,

0.025mm coil winding wire tensioner



Coil Winding Tension Device Controller





Descriptions
The coil winding magnetic tensioner can be used for tension control during the winding process of various wires such as enameled wire, nylon wire, metal wire etc. It can be used to produce coils ,transformer ,stator , motor ,and some other products when specifically matching with the winding machine.

Comparatively speaking, this tensioner has a simple structure and low cost. It is one of the most widely used tensioners on the market.



Features
1. The quality of the magnetic tensioner is decided by two key parts: one is the magnet and the other is the bearing.
Magnet: Generally speaking, the more pairs of magnets you use, the better precision you will get. And Qianhe adopts up to 16 pairs of high strength permanent magnets. Then it can create damping through magnetic field transformation and torque changing. It has no mechanical friction as well so that it can generate long term and stable tension. On the other side, we adopt a high strength magnet so that the tension range of the tensioner can be greater and the application range can be wider.
* Bearing: Qianhe adopts NMB high quality bearing with smaller resistance and longer service life.

2. Groove design: this can effectively prevent jumping wire during production to ensure finished product quality.

3. Each set of product should be strictly tested before delivery to ensure absolute precision uniformity of the tension scale and tension degree value. When one winding machine requires multiple tensioners at the same time, this will be convenient for debugging and installation of the operators.

4. When the winding machine works normally, the tension should keep pace with back tension. Our tensioner is equipped with a manual nobble which can be used to adjust the value of back tension, so that the adjustment from the operators can be free. So the winding machine can be used for winding which should adapt to square frame or of which the winding speed changes rapidly without causing wire breaking.

5. The specification of the tension arm can be selected according to customer requirements.



 Model List



 Describe        Model Tension Range (g) Wire Range    (mm) Tension Arm Weight (kg)
MTA Series Horizontal Type QH19-MTASS 4-110 0.025-.012 CX-1#,2# 0.5





QH19-MTA300S 14-400 0.06-0.25 CX-3#,4#,5# 0.55





QH19-MTAS 30-800 0.08-0.40 CX-6#,7# 0.58





QH19-MTAM 300-1500 0.35-0.8 CX-8# 0.8







 Wire pass drawing



Fine 0.025mm 0.12mm Coil Winding Wire Tensioner 0





Picture show:

Fine 0.025mm 0.12mm Coil Winding Wire Tensioner 1



Fine 0.025mm 0.12mm Coil Winding Wire Tensioner 2

Fine 0.025mm 0.12mm Coil Winding Wire Tensioner 3
