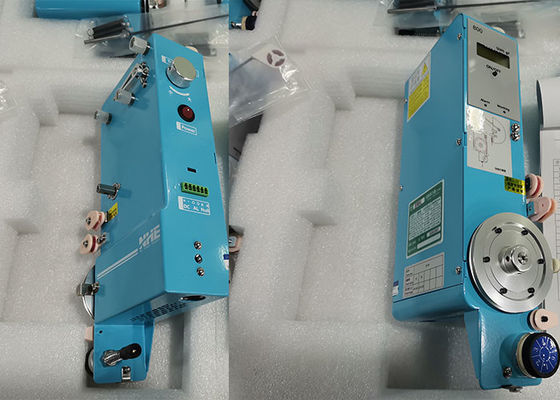

Servo Motor 16mm Coil Winding Tensioner

Servo Motor 16mm Coil Winding Tensioner
Servo Motor 16mm Coil Winding Tensioner

Large Image :  Servo Motor 16mm Coil Winding Tensioner

Product Details:

Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: SF800-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$500-US$1000per set
Packaging Details: Carton with foam
Delivery Time: 3-15 working days
Payment Terms: T/T, Western Union ,Paypal
Supply Ability: 500 set per month
Detailed Product Description
Voltage: 100W Mounting Hole: Ф 16mm
Feature: Feed Wire Automaticly Tension Range: 2-800g
Wire Range: 0.02-0.04mm Power: Electronic,DC36V
Warranty: 12 Months Type: Servo Coil Winding Tensioner
Annual Productivity: 10000 Pcs Per Year Color: White,Optional
Wire Speeding: 20m/s
High Light:

servo motor coil winding tensioner

,

coil winding servo motor tensioner

,

16mm coil winding tensioner

Servo Motor Winding tension Device



wire winding tension is an important factor in the molding techniques of composite material

which influences the quality of winding product directly, and the tension control is a key technique

in wire winding techniques. show that the system is well qualified with high control precision and high reaction speed.



Our Servo Tensioner adopt of Servo Motor not Stepper motor ,

In general, Servo Motors run more smoothly than a stepper motor ,A Servo Motor is a self-contained electrical device,

that rotate parts of a machine with high efficiency and with great precision.



Servo Tensioner

Servo tensioner Unlike traditional tensioning methods,Servo tension device feed the wire automatically depends on the winding requirement.

The tension generate by servo controlled tensiner is very much more stable and consistence,compare with mechanical or magnetic type.

Tension can be set from 2g to 800g,it depends on the model.

Servo motor and control system are all packed within the body,SF series is solid and compact in design.

It operates with DC36V electric power.



1, Active wire feeding follow the speed of the winding machine;

2, SF series servo tensioner with online tension measurement display function, the display value is accurate and stable, the display unit is gf;

3, The DC servo motor with high-precision encoder has the following advantages over the servo tensioner with stepper motor as the wire feeding mechanism:

A,high following accuracy, good tension stability, fast acceleration; low noise;

B,high speed, high torque, large tension range, simple selection;

C,high efficiency, energy saving, low power consumption, minimum operating current, low heat generation of the motor and drive, no need to dissipate heat;



 Products features

  •  Closed-loop tension control, automatic control precision up to ±2%.
  • Excitation currents through tension control
  • high control precision.
  • No matter winding speed fast or not. Always keep Stability well.
  •  AD4-20mA and 485 MODBUS communication



Benefits

TOP REPEATIBILITY PRODUCTION

CONSTANT ELECTRICAL PARAMETERS OF COILS

PERFECT WIRE LAYERING





Specification :



Servo Tensioner
Part.No Tensioner model Tension Arm Tension Spring Tension Range (gf) Wire Range (mm) Tension Arm head structure Tension Arm size
1 SF800-Ⅰ SF-1# T1,T2,T3 2-50 0.02-0.1 Ceramic Eylet/Ruby ,Wire Roller(S) Φ0.8*Φ2*150
2 SF800-Ⅰ SF-2# T2,T4,T5 5-100 0.03-0.15 Ruby / Wire Roller(M) Φ1.5*Φ2*200
3 SF800-Ⅰ SF-3# T5,T8,T9 30-450

0.06-0.28

Ruby / Ceramic Pulley(005)/Wire Roller(M) Φ1.5*Φ4*200
4 SF800-Ⅰ SF-4# T7,T9,T10 100-800 0.12-0.4 Ruby / Ceramic Pulley(005)/Wire Roller(L) Φ2.0*Φ4.0*150



Main parameters



Product Model Power Power Input Air Pressure Mounting Hole Weight Product Size
SF800-I DC36V 100W / Ф 16mm 1.8kg 288*164*72.5(mm)



Dimensional drawing

Servo Motor 16mm Coil Winding Tensioner 0

Product Structure

Servo Motor 16mm Coil Winding Tensioner 1









Picture Display:

Servo Motor 16mm Coil Winding Tensioner 2

Servo Motor 16mm Coil Winding Tensioner 3

Servo Motor 16mm Coil Winding Tensioner 4







Servo Motor 16mm Coil Winding Tensioner 5
