QH19-MTQSS (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE

QH19-MTQSS  (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE
QH19-MTQSS  (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE

Large Image :  QH19-MTQSS (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE

Product Details:

Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: QH19-MTQ300S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$ 1- US$300
Packaging Details: Carton with foam
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union ,paypal
Supply Ability: 5000 set per month
Detailed Product Description
Condition: New Materials: Alloy Resin
Wire Range: 0.06-0.3mm Tension Range: 14-400gf
Warranty: 12 Months Wire Tensioner Coil Winding Application: Winding Machine, Transformer Coil Winding, Toroidal Inductor, Wire Guide, Toroidal Transformer And So On
Function: Tension Control, Transformer Coil Winding Weight: 0.7kg
Type: Coil Widning Tension

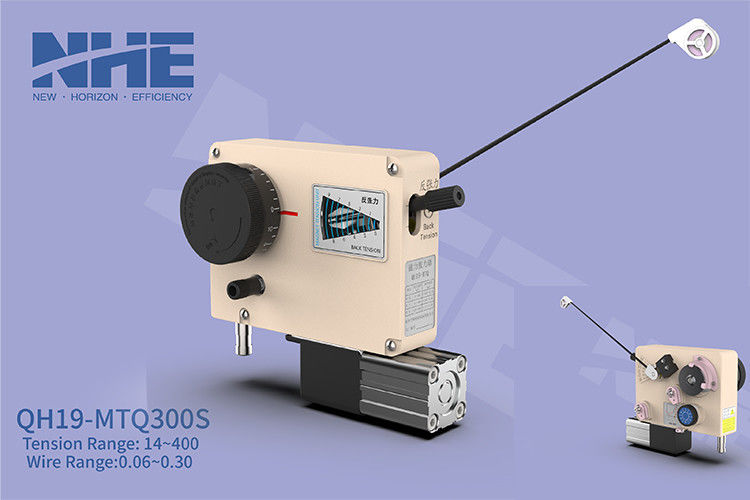

 MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE


Wire tension is one of the most critical parameters of any coil winding process, having an influence on product characteristics, particularly DC resistance of the wire. Wire tension control devices are therefore required to ensure constant wire tension as the wire speed changes during the coil winding process.

One major disadvantage of conventional mechanical wire tensioning devices is that the friction materials are in contact with each other, resulting in mechanical wear to the friction surfaces over. Therefore the wire tension may change from the set value during a series of production runs, requiring adjustment and the consequential disruption may cause loss of efficiency of the coil winding process.



Key advantages of Magnetic wire tensioners:
These magnetic tensioners use a device containing a permanent magnet as a non-contact method of generating a variable resistance to rotation of the main wheel of the tensioner, thus maintaining wire tension at the set value for longer periods than their mechanical counterparts with greatly reduced requirement for adjustment.
 MTQ Series
The models shown here are ideal for use on automatic multi spindle coil winding machines where the wire tension needs to be released during the pin wrapping process. (I/O is required on the winding machine to control the pneumatic actuating cylinder)



Types available: MTQSS, MTQ300S, MTQS,  MTQM,  MTQL.
• The arm position provides feedback to the system, adjusting the main friction wheel to regulate and maintain constant wire tension during the winding cycle.
• Felt pads provide pre-tension and remove dust and other debris from the wire.
• Ceramic eyelets and roller guides at each point of contact protect wire insulation from mechanical damage, and guide the wire.
• The performance of these units is exceptional given the low cost, providing outstanding value for money.
• Captive roller on tension arm is easy to thread, eliminates chance of losing wire.


 Basic Specifications of MTQ series:



Model


Wire Range (mm) Tension Range (g) Tension Arm Weight


QH19-MTQSS


0.025-0.12 4-100 CX-1#,2# 0.75
QH19-MTQ300S


0.06-0.3


14-400 CX-3#,4#,5# 0.90
QH19-MTQS


0.1-0.50


50-900 CX-6#,7# 0.95
QH19-MTQM


0.25-0.80


300-1500 CX-8# 1.18


QH19-MTQL


0.3-1.0

400-2000 CX-8# 1.18
QH-MTLL


0.50-1.50


1000-4000 * 3.5

Wire speed is 10m/s, instant start ,stop the continuous line ,stable tension is ± 1%

Hanging Line Diagram :

QH19-MTQSS  (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE 0

Picture show:



QH19-MTQSS  (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE 1
QH19-MTQSS  (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE 2



QH19-MTQSS  (0.06-0.3mm ) MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE 3
