Coil Winding Machine Diamond Copper Wire Stripping Tools PPKL1.8-2.8mm

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Certification: 3446673

Model Number: PPKL

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$580-US$1350

Packaging Details: Carton with box/foam

Delivery Time: 3-7work days

Payment Terms: T/T, Western Union

Supply Ability: 1000 set per month

Get Best Price
Highlight:

Wire Stripper Blades

,

wiring crimping tool

Material:
Artificial Diamond
Application:
Enameled Copper Wire
Revolution:
5000rpm/min
Material:
Artificial Diamond
Application:
Enameled Copper Wire
Revolution:
5000rpm/min
Coil Winding Machine Diamond Copper Wire Stripping Tools PPKL1.8-2.8mm



Wire Stripper for stripping Enamelled copper wire in Coil Winding Machine   PPKS (0.7-1.2)





Wire Stripper

Stripping of Enameled copper wire



The Wire Stripper blades material is artificial diamond with  high wear resistance and is adjustable to  ensure the consistency and uniformity of stripping.



A thin layer of enamel can be removed from a magnet wire without damaging the copper.

 The result is a neatly stripped copper wire. Turn off the machine and the stripper will stop

 automatically ready for the next working.



The Principle of the Wire Stripper



It works at low voltage (long durability ,electrically harmless ) and is connected to the CNC Automatic

Coil Winding Machine or other machine which can offer 5000rpm/min.Three pieces of hardened

diamond material blades of the stripper from a funnel ,these will close the wire from the largest to the

 smallest diameter,



as the rotary speed increases the magnet wire is feed between the

blades to the required depth ,the start button is pushed and the

stripper slowly drawn away from the wire .





Specification:



Model Wire Diameter Installtion Size Outer diameter*Length
(mm) (mm)
PPKSS 0.15-0.7 Ф7*13.0 Ф31(max)*65
PPKS 0.7-1.2 Ф7*13.0 Ф31(max)*65
PPKM 1.2-1.8 Ф7*13.0 Ф31(max)*65
PPKL 1.8-2.8 Ф7*13.0 Ф31(max)*65



Picture Show :

Coil Winding Machine Diamond Copper Wire Stripping Tools PPKL1.8-2.8mm 0

                                                                      PPKS

Coil Winding Machine Diamond Copper Wire Stripping Tools PPKL1.8-2.8mm 1

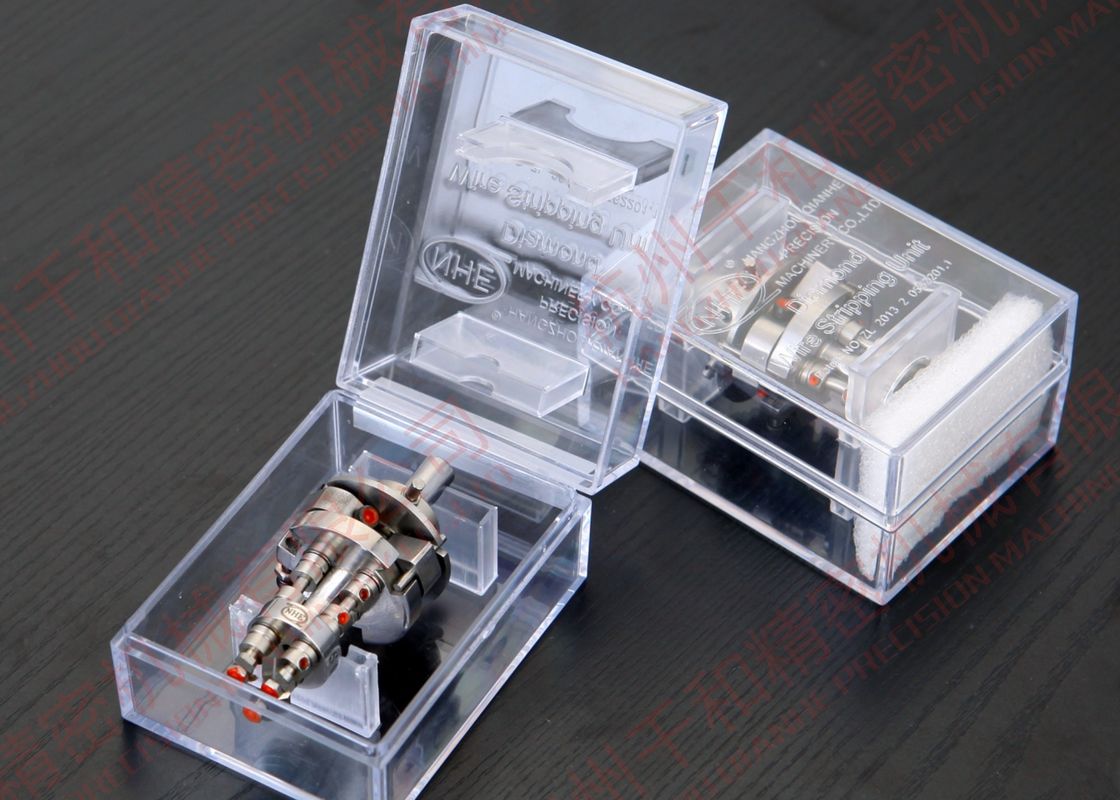

                                                               Inner package

Coil Winding Machine Diamond Copper Wire Stripping Tools PPKL1.8-2.8mm 2

                                                                       Stripping Rendering
