Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205

Good Quality Coil Winding Tensioner on sale
Good Quality Magnetic Tensioner on sale
Very good business man. I will be back soon. He is quick to handle any problems you may have so feel safe to buy.

—— Jorge

The goods is better than my another supplier. Will give you more orders. Thanks !

—— Kylen Pillay

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Vikas

I'm Online Chat Now

Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205

Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205 supplier Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205 supplier Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205 supplier Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205 supplier

Large Image :  Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205

Product Details:

Place of Origin:Hangzhou China
Brand Name:QIANHE
Model Number:TB0403-2010-2606

Payment & Shipping Terms:

Minimum Order Quantity:20pcs
Price:US$8-US$15 per pcs
Packaging Details:Carton with box/foam
Delivery Time:3-7 working days
Payment Terms:T/T, Western Union
Supply Ability:20000 pcs per month
Detailed Product Description
Materials: Stainless Stell And Process Ruby Function: Protect Enameled-Wire
Roughness Of Bore: Above Ra0.025 Polish: Precision Grinding
Work Limit: D1>0.3mm Ruby Nozzle Roughness Of Bore: Ra 0.1
HS Code: 8479909090 Suitable For Use: Wire Winding Of Fine Coil And Thin Coil

Ruby Tipped Winding Nozzle

We manufacture the Winding Nozzle for the Coil Winding Machines. A smooth geometry

from the inside hole to the tip is required for avoiding damage to the winding wire.

Custom configurations in the designing and manufacturing of the Winding Nozzle are also

accommodated.



Product Description



Ruby nozzle: The product is made of stainless steel and ruby by precise processing and combination.
The rigidity of ruby is above than the level 9 and is just less than that of diamond. It is a single crystal
and can be made with high brightness and cleanness. It can effectively protect paint film and long-term continual work to ensure the high insulation of wire coil suffers no hurt.



Key advantages of Ruby Tipped Coil Winding Nozzle:

1) High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.
2) Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.
3) Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Specification and description:



Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205



Processing limit: D1≥ 0.2mm, D1≥ 0.7mm.
Sapphire Nozzles(Ruby nozzle)
Outside diameter: 0.60 ~ 20.00mm, tolerance: 0.004 ~ 0.03mm
Inner diameter: 0.04 ~ 12.00mm, tolerance: 0.003 ~ 0.10mm
Length: 0.40 ~ 15.00mm, tolerance: 0.02 ~ 0.10mm
Taper: Custom design, tolerance: +/-3°
Surface roughness: Rz0.05~Rz0.2
We offer other specifications and special products according to your requirements.





Size List:


Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0 0.8 0.3 0.4
2 TB0403-2008-3007 30 7 2.0 0.8 0.3 0.4
3 TB0403-2508-1505 15 5 2.5 0.8 0.3 0.4
4 TB0403-2010-3510 35 10 2.0 1.0 0.3 0.4
5 TB0403-3010-1505 15 5 3.0 1.0 0.3 0.4
6 TB0403-3008-2504 25 4 3.0 0.8 0.3 0.4
7 TB0403-3008-3007 30 7 3.0 0.8 0.3 0.4
8 TB0403-3010-3015 30 15 3.0 1.0 0.3 0.4
9 TB0403-3010-4510 45 10 3.0 1.0 0.3 0.4
10 TB0605-3010-3005 30 5 3.0 1.0 0.5 0.6
11 TB0605-3012-3010 30 10 3.0 1.2 0.5 0.6
12 TB0605-3015-1505 15 5 3.0 1.5 0.5 0.6
13 TB0605-4020-3010 30 10 4.0 2.0 0.5 0.6
14 TB0505-3015-3015 30 15 3.0 1.5 0.5 0.5
15 TB0806-3015-3010 30 15 3.0 1.5 0.6 0.8
16 TB0806-2018-3507 35 7 2.0 1.8 0.6 0.8
17 TB0806-3015-3008 30 8 3.0 1.5 0.6 0.8
18 TB1008-4020-1505 15 5 4.0 2.0 0.8 1.0
19 TB0808-3000-4500 45 * 3.0 * 0.8 0.8
20 TB0808-3015-1409P 14 9 3.0 1.5 0.8 0.8








 Pictures Show :

Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205



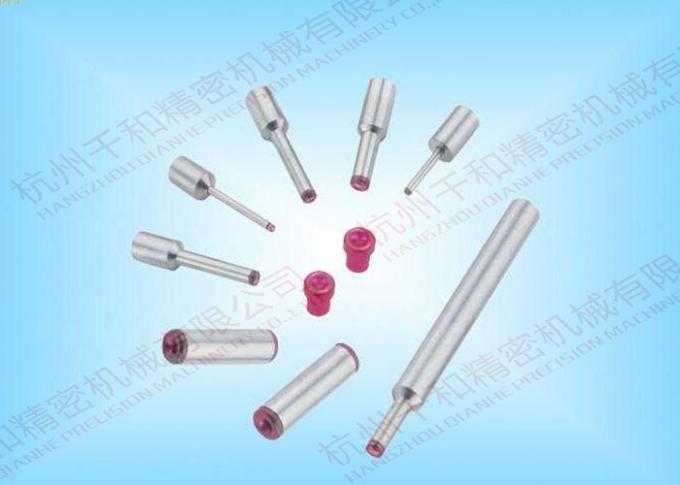

                                                                     Ruby Nozzle

Tungsten Carbide Coil Winding Machine Ruby Tipped Wire Guide Nozzle TB0403-3010-1205

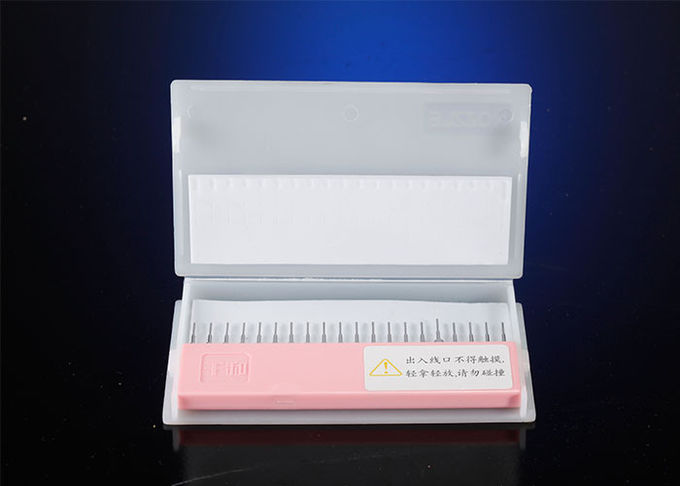

                                                              Ruby Nozzle Inner package
