Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers

China Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers supplier
Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers supplier Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers supplier Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers supplier Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers supplier

Large Image :  Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers

Product Details:

Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: TB0403-301810-260515P

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: US$8-US$15 per pcs
Packaging Details: Carton with box/foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union Paypal
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Materials: Ruby On Tip,Ceramic In Wire Inlet,Stainless Steel Application: CNC Automatic Winding Machine
Function: Protect Enameled-Wire Roughness Of Bore: Above Ra0.025
Polish: Precision Grinding Work Limit: D1>0.3mm
Anti-Bending: 2300n/Mm Quality: First Grade

Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers



Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers

Ruby is the hardest among the materials selected for

coil winding nozzle entrance and exit.

Their single crystal (mono crystalline) structure allows

diamond polishing to a mirror finish unmatched by other material,reducing friction and protecting the wire.Shown at left is a photomicrograph of a ruby exit orifice.







Issues with Ruby Tipped Nozzle


The body of a ruby tipped nozzle is usually made of a stainless steel tube that retains the longitudinal grains inherent to all hard drawn steel tubes, which will form a bulge in the bore when bent then straightened. Upon impact, the ruby tip either will be broken or fractured which may not be visible to the naked eyes but which nevertheless will damage the wire. Therefore, a ruby nozzle after impact should be discarded.





Key advantages of Ruby Tipped Coil Winding Nozzle:



1) High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.


2) Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.


3) Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.


4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Specification and description:

Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers



                                                    Ruby Nozzle Drawings

Size List:


Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0 0.8 0.3 0.4
2 TB0403-2008-3007 30 7 2.0 0.8 0.3 0.4
3 TB0403-2508-1505 15 5 2.5 0.8 0.3 0.4
4 TB0403-2010-3510 35 10 2.0 1.0 0.3 0.4
5 TB0403-3010-1505 15 5 3.0 1.0 0.3 0.4
6 TB0403-3008-2504 25 4 3.0 0.8 0.3 0.4
7 TB0403-3008-3007 30 7 3.0 0.8 0.3 0.4
8 TB0403-3010-3015 30 15 3.0 1.0 0.3 0.4
9 TB0403-3010-4510 45 10 3.0 1.0 0.3 0.4
10 TB0605-3010-3005 30 5 3.0 1.0 0.5 0.6
11 TB0605-3012-3010 30 10 3.0 1.2 0.5 0.6
12 TB0605-3015-1505 15 5 3.0 1.5 0.5 0.6
13 TB0605-4020-3010 30 10 4.0 2.0 0.5 0.6
14 TB0505-3015-3015 30 15 3.0 1.5 0.5 0.5
15 TB0806-3015-3010 30 15 3.0 1.5 0.6 0.8
16 TB0806-2018-3507 35 7 2.0 1.8 0.6 0.8
17 TB0806-3015-3008 30 8 3.0 1.5 0.6 0.8
18 TB1008-4020-1505 15 5 4.0 2.0 0.8 1.0
19 TB0808-3000-4500 45 * 3.0 * 0.8 0.8
20 TB0808-3015-1409P 14 9 3.0 1.5 0.8 0.8




Above table for reference, can be customized according to customer requirements.

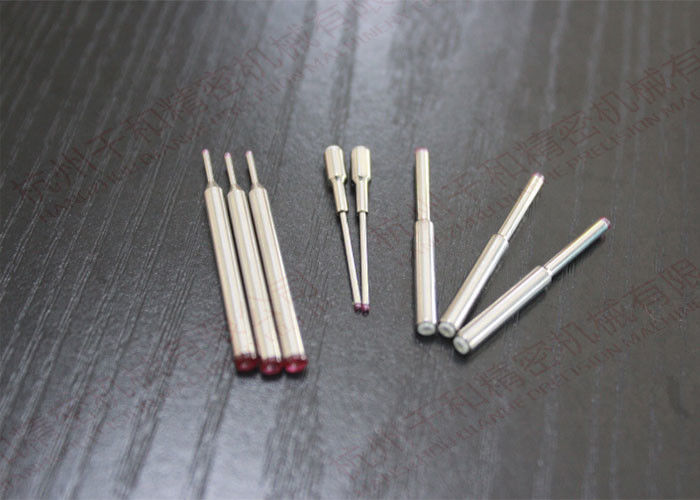

Pictures Show :

Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers



                                                                     Ruby Nozzle

Anti Bending Coil Winding Nozzle Hardest Ruby 1800 – 2200 Vickers

                                                                            Ruby Nozzle
