High Precision Coil Winding Tensioner Servo Tension Controller 200W

High Precision Coil Winding Tensioner Servo Tension Controller 200W supplier High Precision Coil Winding Tensioner Servo Tension Controller 200W supplier

Large Image :  High Precision Coil Winding Tensioner Servo Tension Controller 200W

Product Details:

Place of Origin:Hangzhou China
Brand Name:QIANHE
Model Number:ST800-18

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Price:US$750-US$2000per set
Packaging Details:Carton with foam
Delivery Time:3-15 working days
Payment Terms:T/T, Western Union ,Paypal
Supply Ability:500 set per month
Detailed Product Description
Voltage: DC36-48V Power: 200W
Input Air Pressure: 5kg/cm ² Mounting Hole: Ф 16mm
Weight: 2.5kg Product Size: 310*170*85(mm)
Color: White Wire Speed: 18m/s

High Precision Coil Winding Tensioner Servo Tension Controller 200W



Servo tensioner isdifferent from the traditional passive-line system and it change    to take the initiative to send lines from the motor, by replacing the spring tension    to change its value,

The linear speed of standard type is 5m/s, and it can be customized that according to your special requirements.

this product comes with tension feedback stabilization system that can automatically tension stable equilibrium



servo tensioner
1.Simple and easy adjustment
2.Stable and consistence tension control
3.Non wire break

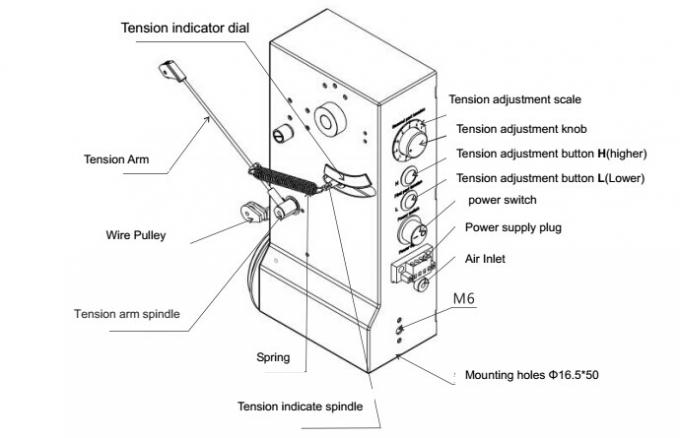

Structure for Servo tensioner

High Precision Coil Winding Tensioner Servo Tension Controller 200W

High Precision Coil Winding Tensioner Servo Tension Controller 200W





Specification :

Part.No. Product Model Maximum wire speed Tension Stage Tension Scope Applied wire diameter Tension Rod
(g) (mm)
1 ST600D-18 18m/s one stage 3-600 0.02-0.3

TR-25#-200

TR-26#-120

TR-27#-150

2 ST800-18 18m/s two stage 3-800 0.02-0.4
3 ST2000-9 9m/s two stage 300-2000 0.2-0.8 TR-28#-150



High Precision Coil Winding Tensioner Servo Tension Controller 200W
