Detailed Product Description
Materials: Stainless Stell And Process Ruby Application: CNC Automatic Winding Machine
Function: Protect Enameled-Wire Roughness Of Bore: Above Ra0.025
Polish: Precision Grinding Work Limit: D1>0.3mm
Ruby Nozzle Roughness Of Bore: Ra 0.1 HS Code: 8479909090
Advantage: Has A Good Toughness, Low Coefficient Of Friction Transport Package: Special Packing

Precision Nozzle

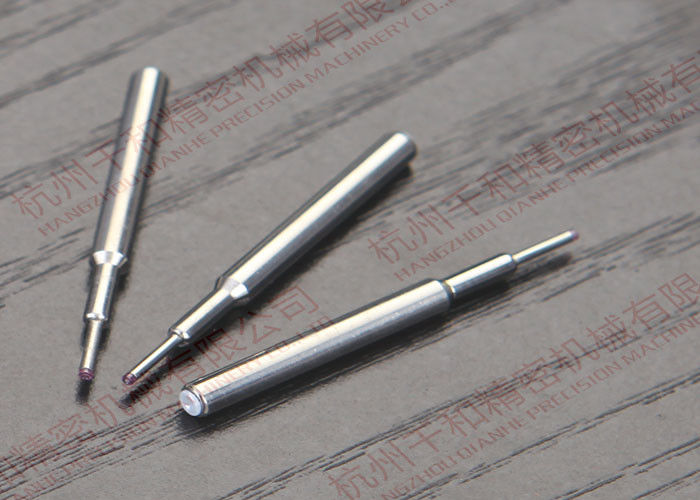

Ruby Tipped Winding Nozzle





We manufacture the Winding Nozzle for the Coil Winding Machines. A smooth geometry

from the inside hole to the tip is required for avoiding damage to the winding wire.

Custom configurations in the designing and manufacturing of the Winding Nozzle are also

accommodated.





There is description and features about Ruby tipped coil winding nozzle as following:

Ruby tipped coil winding nozzle guides:



(Ruby Nozzles) also call wire guide tubes,wire guide eyelets,wire guide needles.It is

used on coil winding machines and cable machines for wire guide.it is made of stainless

steel and ruby by precise processing and combination.The rigidity of ruby is above than

 level 9 and is just less than that of diamond.Ruby tipped coil winding nozzle guide is a

single crystal and can be made with high brightness and cleanness. It can effectively

protect paint film and ling term continual work. In using ,it with very low damage for the

enameled wire. Combined with good toughness characteristics of stainless steel,

finely processed mosaic combination, more than twice lifetime than the tungsten

carbide nozzle in the same environment using .



Key advantages of Ruby Tipped Coil Winding Nozzle:

1) High Wear Resistance

2) Scratch-Proofing

3) Straightness and Stiffness

4) Precise Exit Radii




Specification and description:



Stainless Steel Coil Winding Nozzle Ruby Tipped Scratch Proofing / Stiffness

                                                    Ruby Nozzle Drawings

Size List:


Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0 0.8 0.3 0.4
2 TB0403-2008-3007 30 7 2.0 0.8 0.3 0.4
3 TB0403-2508-1505 15 5 2.5 0.8 0.3 0.4
4 TB0403-2010-3510 35 10 2.0 1.0 0.3 0.4
5 TB0403-3010-1505 15 5 3.0 1.0 0.3 0.4
6 TB0403-3008-2504 25 4 3.0 0.8 0.3 0.4
7 TB0403-3008-3007 30 7 3.0 0.8 0.3 0.4
8 TB0403-3010-3015 30 15 3.0 1.0 0.3 0.4
9 TB0403-3010-4510 45 10 3.0 1.0 0.3 0.4
10 TB0605-3010-3005 30 5 3.0 1.0 0.5 0.6
11 TB0605-3012-3010 30 10 3.0 1.2 0.5 0.6
12 TB0605-3015-1505 15 5 3.0 1.5 0.5 0.6
13 TB0605-4020-3010 30 10 4.0 2.0 0.5 0.6
14 TB0505-3015-3015 30 15 3.0 1.5 0.5 0.5
15 TB0806-3015-3010 30 15 3.0 1.5 0.6 0.8
16 TB0806-2018-3507 35 7 2.0 1.8 0.6 0.8
17 TB0806-3015-3008 30 8 3.0 1.5 0.6 0.8
18 TB1008-4020-1505 15 5 4.0 2.0 0.8 1.0
19 TB0808-3000-4500 45 * 3.0 * 0.8 0.8
20 TB0808-3015-1409P 14 9 3.0 1.5 0.8 0.8








 Pictures Show :

Stainless Steel Coil Winding Nozzle Ruby Tipped Scratch Proofing / Stiffness



                                                                     Ruby Nozzle

   Stainless Steel Coil Winding Nozzle Ruby Tipped Scratch Proofing / Stiffness



Why do you choose us?
1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of

experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,

delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many

customers are very happy to cooperate with us, because we can provide a more competitive

price as a factory.
3,The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified

can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before

the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
