Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles

Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles supplier Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles supplier Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles supplier Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles supplier

Large Image :  Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles

Product Details:

Place of Origin:Hangzhou China
Brand Name:QIANHE
Model Number:TB0403-2008-3007

Payment & Shipping Terms:

Minimum Order Quantity:20pcs
Price:US$8-US$15 per pcs
Packaging Details:Carton with box/foam
Delivery Time:3-7 working days
Payment Terms:T/T, Western Union
Supply Ability:20000 pcs per month
Detailed Product Description
Materials: Stainless Stell And Process Ruby Place Of Origin: Hangzhou China
Application: Enameled Copper Wire Processing Limit: D1≥ 0.3mm
Polish: Precision Grinding Roughness Of Bore: Ra0.025
Export Markets: Global

Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles





High Wear Resistance Ruby Coil Winding Nozzle



We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil

winding nozzle for Nittoku coil winding machine, CNC Automatic coil winding machine

and other brand coil winding machines,.



There is description and features about Ruby tipped coil winding nozzle as following:

Ruby tipped coil winding nozzle guides:



(Ruby Nozzles) also call wire guide tubes,wire guide eyelets,wire guide needles.It is

used on coil winding machines and cable machines for wire guide.it is made of stainless

steel and ruby by precise processing and combination.The rigidity of ruby is above than

 level 9 and is just less than that of diamond.Ruby tipped coil winding nozzle guide is a

single crystal and can be made with high brightness and cleanness. It can effectively

protect paint film and ling term continual work. In using ,it with very low damage for the

enameled wire. Combined with good toughness characteristics of stainless steel,

finely processed mosaic combination, more than twice lifetime than the tungsten

carbide nozzle in the same environment using .



Key advantages of Ruby Tipped Coil Winding Nozzle :

1)High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.
2)Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.
3)Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Specification and description:



Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles

                                                    Ruby Nozzle Drawings

Size List:



Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0  0.8  0.3  0.4
2 TB0403-2008-3007 30 7 2.0  0.8  0.3  0.4
3 TB0403-2508-1505 15 5 2.5  0.8  0.3  0.4
4 TB0403-2010-3510 35 10 2.0  1.0  0.3  0.4
5 TB0403-3010-1505 15 5 3.0  1.0  0.3  0.4
6 TB0403-3008-2504 25 4 3.0  0.8  0.3  0.4
7 TB0403-3008-3007 30 7 3.0  0.8  0.3  0.4
8 TB0403-3010-3015 30 15 3.0  1.0  0.3  0.4
9 TB0403-3010-4510 45 10 3.0  1.0  0.3  0.4
10 TB0605-3010-3005 30 5 3.0  1.0  0.5  0.6
11 TB0605-3012-3010 30 10 3.0  1.2  0.5  0.6
12 TB0605-3015-1505 15 5 3.0  1.5  0.5  0.6
13 TB0605-4020-3010 30 10 4.0  2.0  0.5  0.6
14 TB0505-3015-3015 30 15 3.0  1.5  0.5  0.5
15 TB0806-3015-3010 30 15 3.0  1.5  0.6  0.8
16 TB0806-2018-3507 35 7 2.0  1.8  0.6  0.8
17 TB0806-3015-3008 30 8 3.0  1.5  0.6  0.8
18 TB1008-4020-1505 15 5 4.0  2.0  0.8  1.0
19 TB0808-3000-4500 45 * 3.0  * 0.8  0.8
20 TB0808-3015-1409P 14 9 3.0  1.5  0.8  0.8



 Pictures Show :

Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles

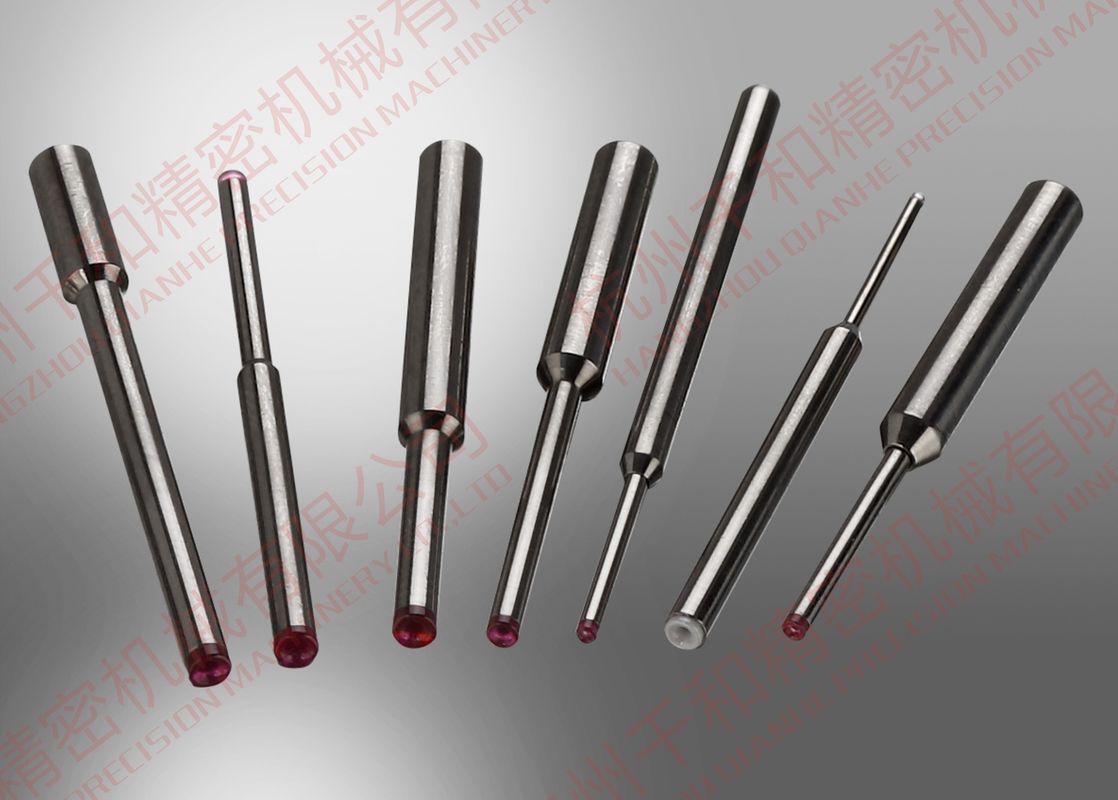

                                                                            Ruby Nozzle

   Scratch Proofing Ruby Nozzle , Mirror Finished Wire Guide Needles

                                                              Ruby Nozzle Inner package
