Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic

China Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic supplier
Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic supplier Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic supplier Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic supplier

Large Image :  Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic

Product Details:

Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: TB0605-3015-1505

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: US$8-US$15 per pcs
Packaging Details: Carton with box/foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Materials: Stainless Stell And Process Ceramic Application: Suitable For All Types Of Automatic Wire Winding Machine
Processing Limit: D1≥ 0.3mm Polish: Precision Grinding
Roughness Of Bore: Ra0.025 Advantage: Has A Good Toughness, Low Coefficient Of Friction
Size: According To Customer Request Making To Order Transport Package: Special Packing

Ruby Tipped Winding Nozzle Precision Wire Nozzle



We manufacture the Winding Nozzle for the Coil Winding Machines. A smooth geometry

from the inside hole to the tip is required for avoiding damage to the winding wire.

Custom configurations in the designing and manufacturing of the Winding Nozzle are also

accommodated.



Key advantages of Ruby Tipped Coil Winding Nozzle :

1)High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.
2)Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.
3)Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Specification and description:



Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic

                                                    Ruby Nozzle Drawings

Size List:



Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0  0.8  0.3  0.4
2 TB0403-2008-3007 30 7 2.0  0.8  0.3  0.4
3 TB0403-2508-1505 15 5 2.5  0.8  0.3  0.4
4 TB0403-2010-3510 35 10 2.0  1.0  0.3  0.4
5 TB0403-3010-1505 15 5 3.0  1.0  0.3  0.4
6 TB0403-3008-2504 25 4 3.0  0.8  0.3  0.4
7 TB0403-3008-3007 30 7 3.0  0.8  0.3  0.4
8 TB0403-3010-3015 30 15 3.0  1.0  0.3  0.4
9 TB0403-3010-4510 45 10 3.0  1.0  0.3  0.4
10 TB0605-3010-3005 30 5 3.0  1.0  0.5  0.6
11 TB0605-3012-3010 30 10 3.0  1.2  0.5  0.6
12 TB0605-3015-1505 15 5 3.0  1.5  0.5  0.6
13 TB0605-4020-3010 30 10 4.0  2.0  0.5  0.6
14 TB0505-3015-3015 30 15 3.0  1.5  0.5  0.5
15 TB0806-3015-3010 30 15 3.0  1.5  0.6  0.8
16 TB0806-2018-3507 35 7 2.0  1.8  0.6  0.8
17 TB0806-3015-3008 30 8 3.0  1.5  0.6  0.8
18 TB1008-4020-1505 15 5 4.0  2.0  0.8  1.0
19 TB0808-3000-4500 45 * 3.0  * 0.8  0.8
20 TB0808-3015-1409P 14 9 3.0  1.5  0.8  0.8



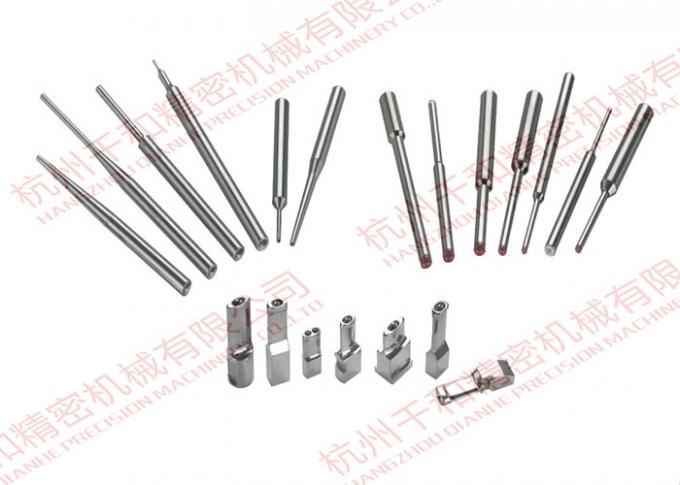

 Pictures Show :

Precision Ruby Tipped Coil Winding Nozzle Stainless Steel With Fine Polished Ceramic

                                                                            Ruby Nozzle
