Ruby Nozzle With High Precision High Wear Resistance

Ruby Nozzle With High Precision High Wear Resistance
Ruby Nozzle With High Precision High Wear Resistance Ruby Nozzle With High Precision High Wear Resistance Ruby Nozzle With High Precision High Wear Resistance Ruby Nozzle With High Precision High Wear Resistance

Large Image :  Ruby Nozzle With High Precision High Wear Resistance

Product Details:
Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: TB0403-2008-3007
Payment & Shipping Terms:
Minimum Order Quantity: 40pcs
Price: US$8-US$15 per pcs
Packaging Details: Carton with box/foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 20000 pcs per month
Detailed Product Description
Materials: Stainless Stell And Process Ruby Processing Limit: D1≥ 0.3mm
Polish: Precision Grinding Roughness Of Bore: Ra0.025
Suitable For Use: Wire Winding Of Fine Coil And Thin Coil HS Code: 847990000
Model Selection: Customized Advantage: High Wear Resistance
High Light:

High Wear Resistance Ruby Nozzle

,

High Precision Ruby Nozzle

,

Precision Grinding Ruby Nozzle

Ruby Nozzle Winding Machine Needle Assembled With High Precision Excellent Hardness High Wear Resistance



High Wear Resistance Ruby Tipped Coil Winding Nozzle



We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil

winding nozzle for all kinds of  coil winding machine, CNC Automatic coil winding machine

Can custom-made speacial dimension according to the requrest !





I. Main specification

Customized winding machine ruby nozzle. Qianhe's Ruby nozzle TB series has an outlet tip made of Ruby, which has a superior hardness –the inner bore and the radius surfaces of the ruby tip are polished to a Ra0.025 surface finish. This ensures high wear resistance and low friction co-efficiency during high-speed winding. Its body is made of hardened stainless steel with dully polished inner bore, coupled with a fine ceramic (alumina) inlet for easy threading and smooth travelling of wire.

Concentricity between the clamping diameter and the outlet diameter is 0.01mm. The inner bore diameter’s tolerance is 0.01 mm.Our precision ruby nozzles are excellent for precise coil layering.



II. Advantages:

Assembled with high precision

Ruby outlet has excellent hardness and very low friction coefficient

High wear resistance.

Applicable: Fine wire coil winding processing.



Size List:



Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0  0.8  0.3  0.4
2 TB0403-2008-3007 30 7 2.0  0.8  0.3  0.4
3 TB0403-2508-1505 15 5 2.5  0.8  0.3  0.4
4 TB0403-2010-3510 35 10 2.0  1.0  0.3  0.4
5 TB0403-3010-1505 15 5 3.0  1.0  0.3  0.4
6 TB0403-3008-2504 25 4 3.0  0.8  0.3  0.4
7 TB0403-3008-3007 30 7 3.0  0.8  0.3  0.4
8 TB0403-3010-3015 30 15 3.0  1.0  0.3  0.4
9 TB0403-3010-4510 45 10 3.0  1.0  0.3  0.4
10 TB0605-3010-3005 30 5 3.0  1.0  0.5  0.6
11 TB0605-3012-3010 30 10 3.0  1.2  0.5  0.6
12 TB0605-3015-1505 15 5 3.0  1.5  0.5  0.6
13 TB0605-4020-3010 30 10 4.0  2.0  0.5  0.6
14 TB0505-3015-3015 30 15 3.0  1.5  0.5  0.5
15 TB0806-3015-3010 30 15 3.0  1.5  0.6  0.8
16 TB0806-2018-3507 35 7 2.0  1.8  0.6  0.8
17 TB0806-3015-3008 30 8 3.0  1.5  0.6  0.8
18 TB1008-4020-1505 15 5 4.0  2.0  0.8  1.0
19 TB0808-3000-4500 45 * 3.0  * 0.8  0.8
20 TB0808-3015-1409P 14 9 3.0  1.5  0.8  0.8

Ruby Nozzle With High Precision High Wear Resistance 0



 Pictures Show :

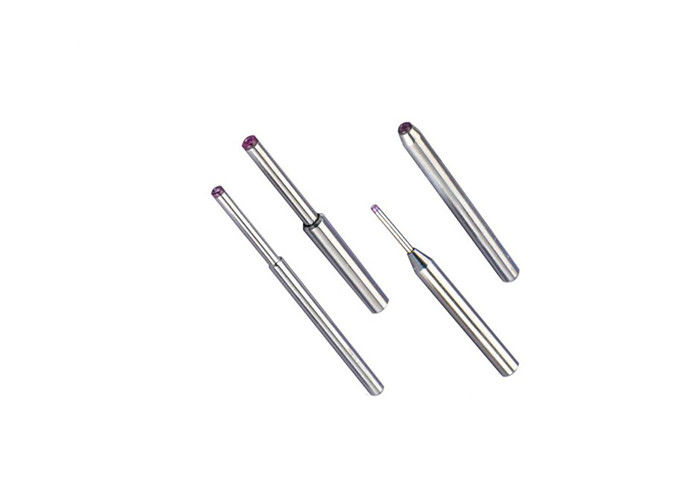

Ruby Nozzle With High Precision High Wear Resistance 1









Why do you choose us?
1. 100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of

experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,

delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many

customers are very happy to cooperate with us, because we can provide a more competitive

price as a factory.
3, The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified

can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before

the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
