Product Details
Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: TB0605-3010-3510
Payment & Shipping Terms
Minimum Order Quantity: 20pcs
Price: US$8-US$15 per pcs
Packaging Details: Carton with box/foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 20000 pcs per month
Materials: |
Stainless Stell And Process Ruby |
Place Of Origin: |
Hangzhou China |
Application: |
Enameled Copper Wire |
Processing Limit: |
D1≥ 0.3mm |
Polish: |
Precision Grinding |
Roughness Of Bore: |
Ra0.025 |
Export Markets: |
Global |
Materials: |
Stainless Stell And Process Ruby |
Place Of Origin: |
Hangzhou China |
Application: |
Enameled Copper Wire |
Processing Limit: |
D1≥ 0.3mm |
Polish: |
Precision Grinding |
Roughness Of Bore: |
Ra0.025 |
Export Markets: |
Global |
Customized Red High Hardness Ruby Nozzle for NITTOKU Coil Winding Machine
Ruby tipped coil winding nozzle guides:
(Ruby Nozzles) also call wire guide tubes,wire guide eyelets,wire guide needles.It is
used on coil winding machines and cable machines for wire guide.it is made of stainless
steel and ruby by precise processing and combination.The rigidity of ruby is above than
level 9 and is just less than that of diamond.Ruby tipped coil winding nozzle guide is a
single crystal and can be made with high brightness and cleanness. It can effectively
protect paint film and ling term continual work. In using ,it with very low damage for the
enameled wire. Combined with good toughness characteristics of stainless steel,
finely processed mosaic combination, more than twice lifetime than the tungsten
carbide nozzle in the same environment using .
Key advantages of Ruby Tipped Coil Winding Nozzle :
1)High Wear Resistance
2)Scratch-Proofing
3)Straightness and Stiffness
4) Precise Exit Radii
Specification and description:
Ruby Nozzle Drawings
Size List:
| Part.No. | Model | Specifications(mm) | |||||
| L | L1 | D | D1 | d1 | d2 | ||
| 1 | TB0403-2008-1505 | 15 | 5 | 2.0 | 0.8 | 0.3 | 0.4 |
| 2 | TB0403-2008-3007 | 30 | 7 | 2.0 | 0.8 | 0.3 | 0.4 |
| 3 | TB0403-2508-1505 | 15 | 5 | 2.5 | 0.8 | 0.3 | 0.4 |
| 4 | TB0403-2010-3510 | 35 | 10 | 2.0 | 1.0 | 0.3 | 0.4 |
| 5 | TB0403-3010-1505 | 15 | 5 | 3.0 | 1.0 | 0.3 | 0.4 |
| 6 | TB0403-3008-2504 | 25 | 4 | 3.0 | 0.8 | 0.3 | 0.4 |
| 7 | TB0403-3008-3007 | 30 | 7 | 3.0 | 0.8 | 0.3 | 0.4 |
| 8 | TB0403-3010-3015 | 30 | 15 | 3.0 | 1.0 | 0.3 | 0.4 |
| 9 | TB0403-3010-4510 | 45 | 10 | 3.0 | 1.0 | 0.3 | 0.4 |
| 10 | TB0605-3010-3005 | 30 | 5 | 3.0 | 1.0 | 0.5 | 0.6 |
| 11 | TB0605-3012-3010 | 30 | 10 | 3.0 | 1.2 | 0.5 | 0.6 |
| 12 | TB0605-3015-1505 | 15 | 5 | 3.0 | 1.5 | 0.5 | 0.6 |
| 13 | TB0605-4020-3010 | 30 | 10 | 4.0 | 2.0 | 0.5 | 0.6 |
| 14 | TB0505-3015-3015 | 30 | 15 | 3.0 | 1.5 | 0.5 | 0.5 |
| 15 | TB0806-3015-3010 | 30 | 15 | 3.0 | 1.5 | 0.6 | 0.8 |
| 16 | TB0806-2018-3507 | 35 | 7 | 2.0 | 1.8 | 0.6 | 0.8 |
| 17 | TB0806-3015-3008 | 30 | 8 | 3.0 | 1.5 | 0.6 | 0.8 |
| 18 | TB1008-4020-1505 | 15 | 5 | 4.0 | 2.0 | 0.8 | 1.0 |
| 19 | TB0808-3000-4500 | 45 | * | 3.0 | * | 0.8 | 0.8 |
| 20 | TB0808-3015-1409P | 14 | 9 | 3.0 | 1.5 | 0.8 | 0.8 |
Pictures Show :

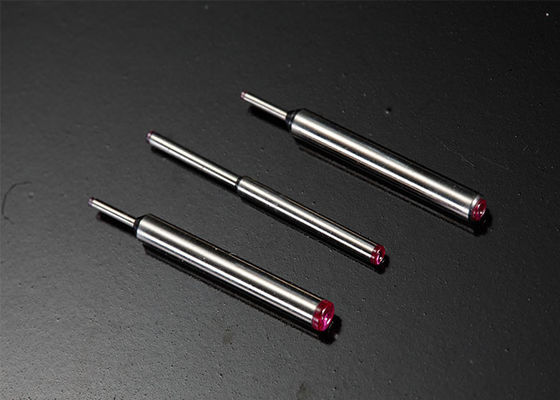

Ruby Nozzle
Ruby Nozzle
