Product Details
Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: Handheld
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$150-US$350 per set
Packaging Details: Carton /box with Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 set per month
Place Of Origin: |
Hangzhou China |
Materials: |
Tungsten Steel |
Color: |
Silver |
Working Pressure: |
5kg/C㎡ |
Open Mouth: |
3.8mm-4.2mm |
Place Of Origin: |
Hangzhou China |
Materials: |
Tungsten Steel |
Color: |
Silver |
Working Pressure: |
5kg/C㎡ |
Open Mouth: |
3.8mm-4.2mm |
Light Weight Aluminum Air Nipper Handheld Durable With 25° Angl
Air Nippers & Blades --Hand-Held Nippers
--hand-held nippers are ideal for helping to reduce operator fatigue.
Range of application :
The product is used in Automatic coil winding machine and some other Automatic Machine
It is a general set of blades used for cutting copper wire ,steel wire,soft plastic and hard plastic .
Improved durability with brazed high-speed steel.
We provides a generous selection of blades for all wire cutting needs, including resin product
gate cuts.and automatic welding equipment.
Features:
Knurled housing for a secure and comfortable gripA large selection of blades to choose from for cutting,
crimping, and custom applications Handheld Air Nipper Set with Alloy Steel Cutting Blade, Oval Head, 25° Angle
The light-weight air nipper body is crafted out of durable aluminum, has a spring return piston design,
and comes furnished with a knurled-pattern grip on the housing to prevent slippage, a CE-compliant
safety-lever throttle, an 8-foot nylon braided air hose with fittings,
and a hook for hanging the tool up when not in use.
This Handheld Air Nipper can match with many type of Air Nipper Blades such as WIS-A , WIS-B, WIS-D,WIS-F,WIS-G, WLS ,WCS ,WIL etc.
We can also do as customers special requirements .
Specification :
| Cylinder Model | Blades Model | Applied cutting wire (Фmm) | ||
| Copper wire | Steel Wire | Soft plastic wire | ||
| CS10,C20,C40,Handheld | WIS-A,WIS-B,WIS-D,WIS-F ,WIS-G,WLS/WCS/WIL | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| C30 | WIS-A.WIS-B,WIS-C,WIS-D,WIS-F,WIS-G,WLS/WCS/WIL | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| C25 | WIS-E | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| C50 | WIS-E2 | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| CS-5 | ** | 0.02-0.50 | ** | ** |
| C45 | WIB-A/B/C | 0.10-2.50 | 0.10-1.50 | 0.10-3.00 |
Air Nipper Cylinder installation Drawings
Picture Show :

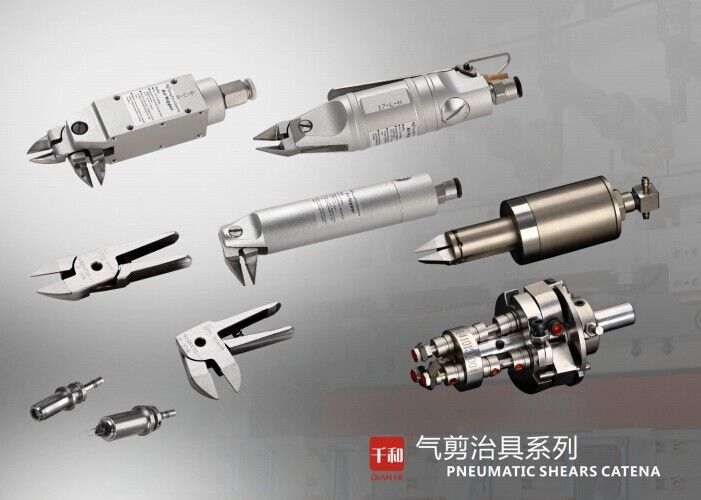

Air Nipper Handheld
Matched Air Nipper Blades
