Highlight:
High Precision Air Nipper cutting various electronic wires (conductors, enameled wires)
NHE High Precision Pneumatic Cutter
Applications:
Air Nipper /Pneumatic scissors are shearing tools powered by compressed air. Featuring high shear force, efficiency,
operational stability and low energy consumption, they are widely used in industrial manufacturing and processing scenarios.
Their core applications are categorized by industry as follows:
1. Electronic and electrical manufacturing
Used for cutting various electronic wires (e.g., conductors, enameled wires), component leads (e.g., capacitor and resistor leads),
flat cables and small plastic cable ties. They produce flat, burr-free cuts that prevent damage to electronic components,
making them ideal for high-precision operations in automated production lines.
2. Automotive component processing
Suitable for cutting automotive wiring harnesses, pipeline cable ties, plastic buckles, as well as trimming leftover edges
and scraps of stamped parts. They can be integrated with robotic arms for batch automated operations, significantly
improving production efficiency in automotive assembly lines.
3. Plastic and injection molding industry
Used to trim sprues, runners, flashes and burrs of injection-molded parts, especially for finishing the edges of rigid
plastic products. The controllable shear force ensures no deformation of the product body.
4. Wire harness processing industry
Serving as a supporting tool in wire harness processing equipment, they accurately cut wires and cables of different specifications.
They are also applicable for cutting insulation sleeves and braided sleeves used in wire harnesses.
5. Automation equipment integration
Integrated into robotic arms and assembly line workstations to perform automated shearing processes—
such as 3C product assembly, lithium battery tab cutting, and photovoltaic module lead cutting—supporting high-frequency,
standardized industrial production.
6. Sheet metal and wire cutting
Designed for cutting thin metal wires (e.g., iron wire, copper wire) and thin metal sheets (e.g., aluminum foil, copper foil).
Some heavy-duty pneumatic scissors can handle thin-gauge metal plates.

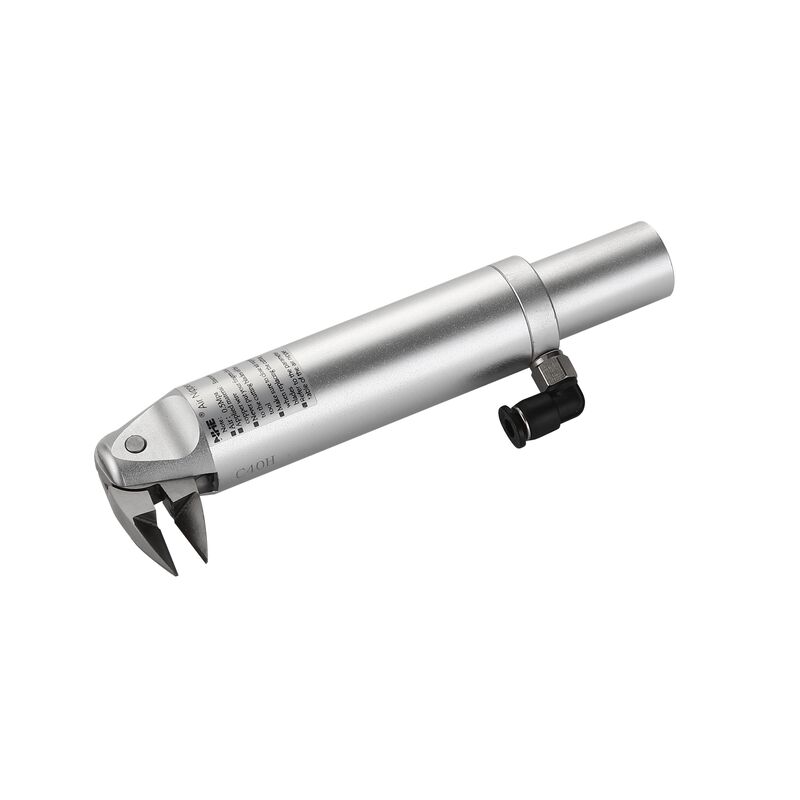

Cylinder C40H
- Compatible Blade Model
- WIS-A/B/D and WLS Series
- Scissor Opening :3.0-3.5 Adjustable
- Air Hose Diameter (mm):φ4
- Cutting Copper Wire : 0.02-1.0mm
- Cutting Flexible Wire :0.02-2.0mm
Key Features
1. The cutter head is made of imported tungsten steel with a welded structure, featuring a sharp
and wear-resistant cutting edge.
The shear service life of the middle cutting edge exceeds 1,000,000 cycles.
2. The handle base material is manufactured through a series of processes including high-quality
alloy steel forging → heat treatment → precision machining → riveting.
3. The cylinder surface is subjected to hardening treatment for scratch resistance,
while the piston and sealing ring
are made of imported premium materials.
4. Operating Air Pressure: 0.5 Mpa
5. Customization of special dimensions is available according to customer requirements.
Specification Table
Frequently Asked Questions (FAQ)
Q1: How do I know when to replace the blades?
A: If you notice burrs on the cut wire end, or if the wire is being crushed instead of sliced, the blade edge is dull.
For Tungsten Steel blades, we recommend replacement rather than re-sharpening to maintain precision geometry.
Q2: Are NHE nippers compatible with Nile or Vessel models?
A: Yes. Our bodies and blades follow international standard dimensions. For example, our C30 series is
a direct replacement for standard square-body nippers from major Japanese brands, offering comparable performance
at a more competitive price.
