High polish Ceramic Wire Guide Pulley HRA88 hardness for coil winding machine

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Model Number: QH1008-B10

Payment & Shipping Terms

Minimum Order Quantity: 10 pcs

Packaging Details: Carton with foam

Delivery Time: 3-7 working days

Payment Terms: T/T, Western Union

Supply Ability: 10000

Get Best Price
Highlight:

wire guide pulley

,

cable pulley wheels with bearings

Materials:
AL2O395%
Hardness:
HRA88
Color:
Black And Pink
Polish:
Fine Polish Degree Ra0.2
Molding Method:
Low Pressure In Jection
Bearing:
High Speeding Bearing
Type:
Bearing
Customized:
Non-Customized
Transport Package:
Bag/Carton
HS Code:
910121000
Materials:
AL2O395%
Hardness:
HRA88
Color:
Black And Pink
Polish:
Fine Polish Degree Ra0.2
Molding Method:
Low Pressure In Jection
Bearing:
High Speeding Bearing
Type:
Bearing
Customized:
Non-Customized
Transport Package:
Bag/Carton
HS Code:
910121000
High polish Ceramic Wire Guide Pulley HRA88 hardness for coil winding machine

Coil Winder Wire Guide Pulley Wheels With Bearings





Product Description
Cable pulley wheels, wire cable pulley, flanged cable pulley, plastic cable pulley, nylon cable pulley.
Flanged ceramic roller, Wire guide pulleys (ceramic pulleys) is commonly used component when wire passing is required, it can be used in coil winding machine, cable machine and the textile machinery as well. The porcelain ring is mounted on the bearing, Coil winding wire guide pulley(wire roller) will rotate
by the thread and wire passing on the surface of the ring. Thus the sliding friction has been converted
to the static friction.

But at the start and stop, in order to overcome the inertia, there will be a partial sliding friction. The surface Polish degree of the porcelain ring reaches Ra0.2; The beating during rotation is under 0.15.
We select the 99% AL2O3 as the material with the hardness of HRA88 and the density of 3.85...Two nylon side walls have been put to the both side of the ceramic ring and the bearing, coil winding wire
guide pulley (wire roller) combines one wire roller
Cable pulley wheels, wire cable pulley, flanged cable pulley, plastic cable pulley, nylon cable pulley





Description:



1, Wire groove:

    Material: AL2O395%, hardness: HRA88.

   Roughness: fine polishing above Ra0.2.



2, Original bearing from Japan



3, POM plastic sheeting.



Specification :

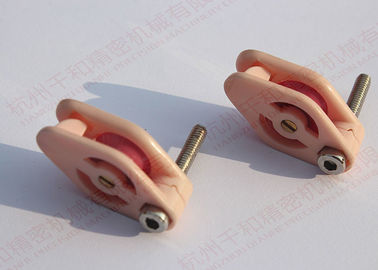

High polish Ceramic Wire Guide Pulley HRA88 hardness for coil winding machine 0

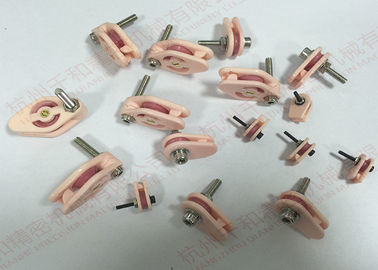

High polish Ceramic Wire Guide Pulley HRA88 hardness for coil winding machine 1



                                                                        Combined wheel

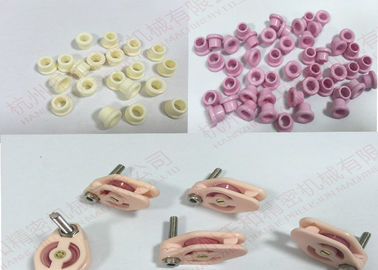

High polish Ceramic Wire Guide Pulley HRA88 hardness for coil winding machine 2

                                                                            Ceramic Pulley
