Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510

Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510
Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510 Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510 Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510 Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510

Large Image :  Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510

Product Details:
Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: TB0808-3020-3013.5
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: US$8-US$15 per pcs
Packaging Details: Carton with box/foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 20000 pcs per month
Detailed Product Description
Materials: Stainless Stell And Process Ceramic Application: Suitable For All Types Of Automatic Wire Winding Machine
Processing Limit: D1≥ 0.3mm Polish: Precision Grinding
Roughness Of Bore: Ra0.025 Advantage: Has A Good Toughness, Low Coefficient Of Friction
Size: According To Customer Request Making To Order Transport Package: Special Packing
Function: Protect Enameled-Wire HS Code: 847990000
High Light:

coil winding nozzle

,

wire guide eyelets

Ruby Tipped Wire Guide Nozzle (TB0808-4020-4314P) Coil Winding Nozzle



We manufacture the Winding Nozzle for the Coil Winding Machines. A smooth geometry

from the inside hole to the tip is required for avoiding damage to the winding wire.

Custom configurations in the designing and manufacturing of the Winding Nozzle are also

accommodated.



Product Description:
Ruby nozzle: The product is made of stainless steel and ruby by precise processing and combination.
The rigidity of ruby is above than the level 9 and is just less than that of diamond. It is a single crystal
and can be made with high brightness and cleanness. It can effectively protect paint film and long-term continual work to ensure the high insulation of wire coil suffers no hurt.



Key advantages of Ruby Tipped Coil Winding Nozzle :

1)High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.
2)Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.
3)Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Specification and description:



Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510 0

                                                    Ruby Nozzle Drawings

Size List:



Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0  0.8  0.3  0.4
2 TB0403-2008-3007 30 7 2.0  0.8  0.3  0.4
3 TB0403-2508-1505 15 5 2.5  0.8  0.3  0.4
4 TB0403-2010-3510 35 10 2.0  1.0  0.3  0.4
5 TB0403-3010-1505 15 5 3.0  1.0  0.3  0.4
6 TB0403-3008-2504 25 4 3.0  0.8  0.3  0.4
7 TB0403-3008-3007 30 7 3.0  0.8  0.3  0.4
8 TB0403-3010-3015 30 15 3.0  1.0  0.3  0.4
9 TB0403-3010-4510 45 10 3.0  1.0  0.3  0.4
10 TB0605-3010-3005 30 5 3.0  1.0  0.5  0.6
11 TB0605-3012-3010 30 10 3.0  1.2  0.5  0.6
12 TB0605-3015-1505 15 5 3.0  1.5  0.5  0.6
13 TB0605-4020-3010 30 10 4.0  2.0  0.5  0.6
14 TB0505-3015-3015 30 15 3.0  1.5  0.5  0.5
15 TB0806-3015-3010 30 15 3.0  1.5  0.6  0.8
16 TB0806-2018-3507 35 7 2.0  1.8  0.6  0.8
17 TB0806-3015-3008 30 8 3.0  1.5  0.6  0.8
18 TB1008-4020-1505 15 5 4.0  2.0  0.8  1.0
19 TB0808-3000-4500 45 * 3.0  * 0.8  0.8
20 TB0808-3015-1409P 14 9 3.0  1.5  0.8  0.8



 Pictures Show :

Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510 1

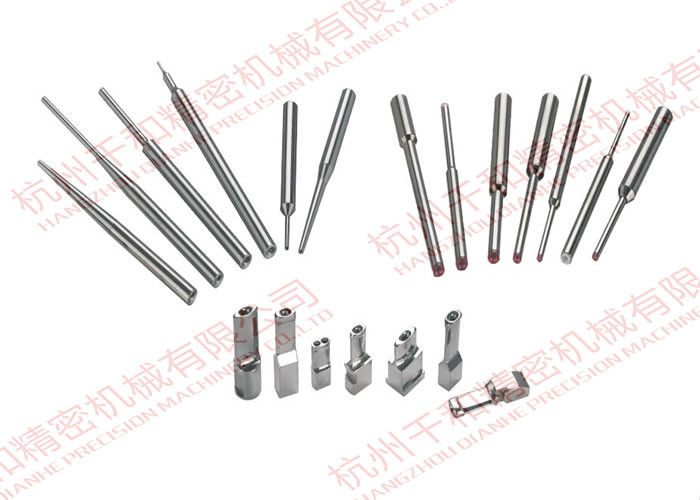

                                                                            Ruby Nozzle

   Mirror Finished Stainless Steel Ruby Nozzle Ruby Coil Winding Nozzle TB06053010-3510 2

                                                              Ruby Nozzle Inner package





Why do you choose us?
1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of

experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,

delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many

customers are very happy to cooperate with us, because we can provide a more competitive

price as a factory.
3,The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified

can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before

the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
