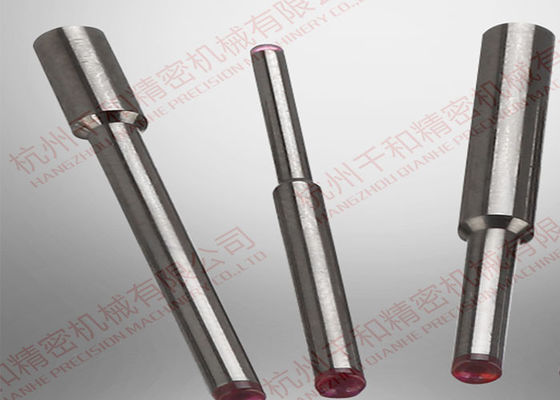

Precision Grinding Ruby Tipped Stainless Steel Nozzle For Coil Winding Machine

small.img.alt small.img.alt

Large Image :  Precision Grinding Ruby Tipped Stainless Steel Nozzle For Coil Winding Machine

Product Details:
Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: TB00505-3010-3510
Payment & Shipping Terms:
Minimum Order Quantity: 40pcs
Price: US$8-US$15 per pcs
Packaging Details: Carton with box/foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 20000 pcs per month
Detailed Product Description
Materials: Stainless Stell And Process Ruby Processing Limit: D1≥ 0.3mm
Polish: Precision Grinding Roughness Of Bore: Ra0.025
Suitable For Use: Wire Winding Of Fine Coil And Thin Coil Function: Protect Enameled-Wire
HS Code: 847990000 Size: According To Customer Request
Advantage: Has A Good Toughness, Low Coefficient Of Friction Transport Package: Special Packing
High Light:

wire guide eyelets


stainless steel nozzle



High Wear Resistance Ruby Tipped Coil Winding Nozzle


We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil

winding nozzle for Nittoku coil winding machine, CNC Automatic coil winding machine

and other brand coil winding machines,.


Product Description
Ruby nozzle, stainless steel coil winding nozzle
Ruby nozzle
Product Category: Nozzle series

Product Features:
The product is made of stainless steel and ruby by precise processing and combination.
The rigidity of ruby is above than the level 9 and is just less than that of diamond. It is a single
crystal and can be made with high brightness and cleanness. It can effectively protect paint film
and long-term contiual work to ensure the high insulation ofwire coil suffers no hurt.
Customized according to customer requirements


Key advantages of Ruby Tipped Coil Winding Nozzle :


1)High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.
3)Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Advantage of our coil winding accessaries
1.Precise coil winding accessaries such as wire guide pulley, magnetic damper,

electric brake and nozzles.
2.Competitive price
3.Excellent quality of tension device and accessaries
4.Fast response speed
5.Professional tensioner engineering team
6.Good after-sales service


Specification and description:


Precision Grinding Ruby Tipped Stainless Steel Nozzle For Coil Winding Machine 0

                                                    Ruby Nozzle Drawings

Size List:


Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0  0.8  0.3  0.4
2 TB0403-2008-3007 30 7 2.0  0.8  0.3  0.4
3 TB0403-2508-1505 15 5 2.5  0.8  0.3  0.4
4 TB0403-2010-3510 35 10 2.0  1.0  0.3  0.4
5 TB0403-3010-1505 15 5 3.0  1.0  0.3  0.4
6 TB0403-3008-2504 25 4 3.0  0.8  0.3  0.4
7 TB0403-3008-3007 30 7 3.0  0.8  0.3  0.4
8 TB0403-3010-3015 30 15 3.0  1.0  0.3  0.4
9 TB0403-3010-4510 45 10 3.0  1.0  0.3  0.4
10 TB0605-3010-3005 30 5 3.0  1.0  0.5  0.6
11 TB0605-3012-3010 30 10 3.0  1.2  0.5  0.6
12 TB0605-3015-1505 15 5 3.0  1.5  0.5  0.6
13 TB0605-4020-3010 30 10 4.0  2.0  0.5  0.6
14 TB0505-3015-3015 30 15 3.0  1.5  0.5  0.5
15 TB0806-3015-3010 30 15 3.0  1.5  0.6  0.8
16 TB0806-2018-3507 35 7 2.0  1.8  0.6  0.8
17 TB0806-3015-3008 30 8 3.0  1.5  0.6  0.8
18 TB1008-4020-1505 15 5 4.0  2.0  0.8  1.0
19 TB0808-3000-4500 45 * 3.0  * 0.8  0.8
20 TB0808-3015-1409P 14 9 3.0  1.5  0.8  0.8


 Pictures Show :

   Precision Grinding Ruby Tipped Stainless Steel Nozzle For Coil Winding Machine 1

                                                              Ruby Nozzle Inner package

Precision Grinding Ruby Tipped Stainless Steel Nozzle For Coil Winding Machine 2
