Product Details
Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: SF100-II
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$500-US$1000per set
Packaging Details: Carton with foam
Delivery Time: 3-15 working days
Payment Terms: T/T, Western Union ,Paypal
Supply Ability: 500 set per month
Power Supply: |
DC36-48V |
Electric Current:: |
2.7A |
Mounting Hole: |
Ф 16mm |
Wire Speed: |
12m/s 18m/s / 20m/s |
Feature: |
Feed Wire Automaticly |
Tension Range: |
Between 3 G To 800g By Changing Tension Spring |
Wire Range: |
0.05-0.12mm |
Weight: |
2.5kg |
Product Dimension: |
293*130*62mm |
Application: |
Motor / Stator Electronic Transformer /Coil /Inductor |
Power Supply: |
DC36-48V |
Electric Current:: |
2.7A |
Mounting Hole: |
Ф 16mm |
Wire Speed: |
12m/s 18m/s / 20m/s |
Feature: |
Feed Wire Automaticly |
Tension Range: |
Between 3 G To 800g By Changing Tension Spring |
Wire Range: |
0.05-0.12mm |
Weight: |
2.5kg |
Product Dimension: |
293*130*62mm |
Application: |
Motor / Stator Electronic Transformer /Coil /Inductor |
Product Description:

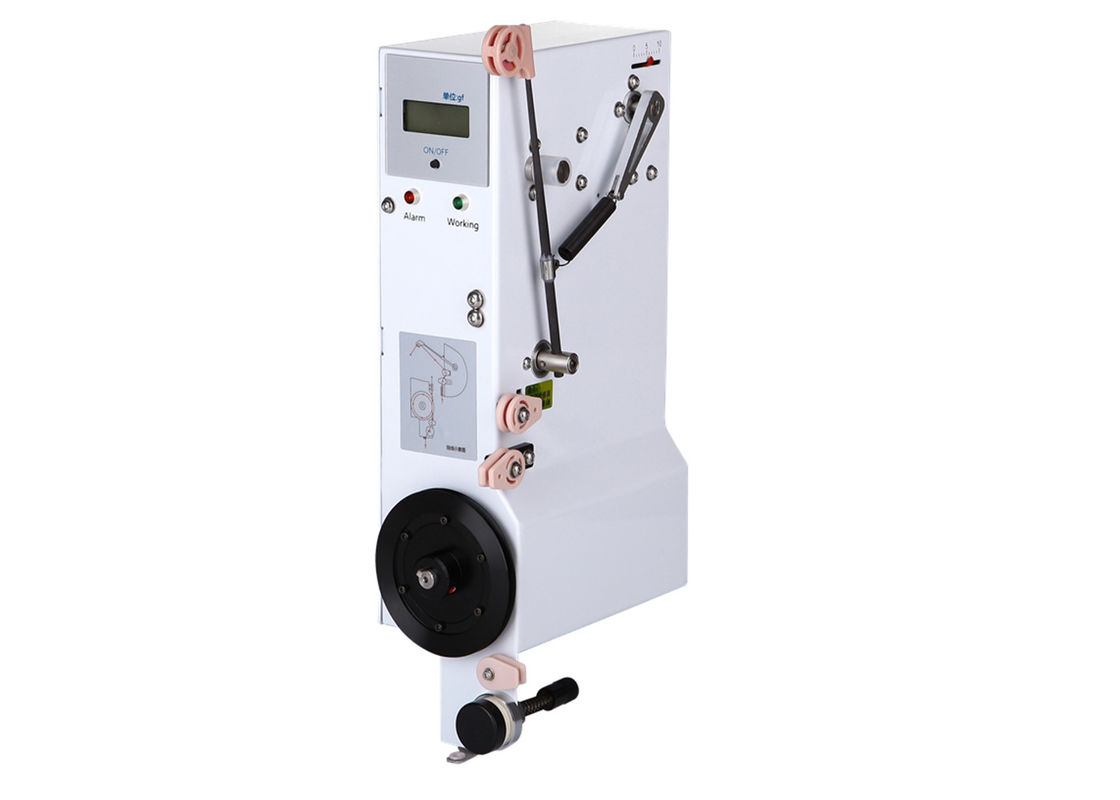

Coil winding Servo tensioner wity cylinder is by integrating the electronic system and non-contact breaking design, there is barely any contact in the core mechanism of the main tension, wheel, except the connecting bearing. This combination provide smooth, stable and consistence tension, even in high speed winding. The non contact designs also reduce wear and tear of most of the critical components as to cut down maintenance cost. All SF comes with " Auto Tension Fine Tuning System". By sensing the movement of the tension arm, the control system will fine tuning the tension automatically.
Control system are packed within the body.
SF Series is solid and compact in design. It operates with DC36V electronic power.
SF Series also comes with wire jump prevention and wire breakage detection.
Servo tensioner is sent from the traditional passive-line change to take the initiative to send lines from the motor, by replacing the spring tension to change its value, this product comes with tension feedback stabilization system that can automatically tension stable equilibrium. Tension is not speed, wire cover, pulleys, and felt the impact of tension in particular stable and easy to adjust.
CNC Full Automatic Coil Winding Machine Equipment Coil Winding Tensioner Servo Wire Tensioner for Fine Copper Wire
Detailes of Coil Winding Tensioner Servo Wire Tensioner
| Model: | SF Series |
| Characteristic: | With Cylinder inside |
| Tension roller is fixed in front of tensioner | |
| Function: | Can change over two tension forces |
| Power: | DC36V |
| Electric Current: | 2.7A |
| Insert Air Pressure: | 5kg/cm² |
| Wire speeding: | 12m/s,18m/s,20m/s |
| Product Size: |
350mm*195mm*90mm |
Specification :
| Servo Tensioner | |||||||
| Part.No | Tensioner model | Tension range (g) | Wire range (mm) | Tension bar model | Spring | Tension bar head structure | Tension rod size |
| 1 | SF50-Ⅰ/II | 3~50 | 0.02~0.08 | SF-1# | T1,T2,T3 | Ceramic Eylet/Ruby ,Wire Roller(S) | Φ0.8*Φ2*150 |
| 2 | SF100-Ⅰ/II | 25~100 | 0.05~0.12 | SF-2# | T3,T4,T5 | Ruby / Wire Roller(M) | Φ1.5*Φ2*200 |
| 3 | SF200-Ⅰ/II | 50~200 | 0.08~0.17 | SF-3# | T4,T5,T6 | Ruby / Ceramic Pulley(005)/Wire Roller(M) | Φ1.5*Φ4*200 |
| 4 | SF400-Ⅰ/II | 100~400 | 0.12~0.25 | SF-4# | T5,T6,T8 | Ruby / Ceramic Pulley(005)/Wire Roller(L) | Φ2.0*Φ4.0*150 |
| 5 | SF800-Ⅰ/II | 300~800 | 0.21~0.37 | SF-5# | T8,T9 | Ceramic Pulley(S)/Wire Roller(L) | Φ2.0*Φ4.0*120 |
| 6 | SF2000-II | 500~2000 | 0.3~0.8 | TR-28# | TDM-B/C/D | Ceramic Pulley(M) | Φ4.0*120 |
Main parameters
| Product Model | Power | Power | Input Air Pressure | Mounting Hole | Weight | Product Size |
| SF--I | DC36V | 100W | / | Ф 16mm | 2.0kg | 290*130*58(mm) |
| SF--II | 5kg/cm ² | 2.5kg | 293*130*62(mm) | |||
| ST2000-II | 200W | 3.7kg | 350*195*90(mm) |
Dimensional drawing
Product Structure
Picture Display:
Remark:
1.The standard type for wire speed is 12m/s, If any special requirement, please contact us to customized.
2.In the all series of servo tensioner, please confirm output of maximum tension scope. Such as: You need tension range is 1-100g, that can select SF100. According to definition of type. Kindly confirm if need properties of tension attenuator or display tension function and mounted position of the tension wheel. If no need other function,That can choose SF100.
