Coil Winding Nozzle Tungsten Carbide Porous Shaped

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Model Number: Be made according to dimensions drawing.

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Packaging Details: carton with bag

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union

Supply Ability: 5000 pcs per month

Get Best Price
Highlight:

Coil Winding Nozzle Tungsten Carbide

,

Porous Shaped Coil Winding Nozzle

,

High Rigidity Coil Winding Nozzle

Material:
Hard Alloy / Carbide Steel
Hardness:
Hardness Up To Hra90 Or More
Polish:
Precision Grinding
Advantage:
With High Rigidity And Hardness, Not Easy To Bend
Ransport Package:
Special Packing
Sample:
Available,Acceptable
Anti-bending:
2300n/Mm
Roughness Of Bore:
Ra0.1
Usage:
Coil Winding Machine,starter Stator Producing Machine,nittotu Winding Machine
Condition:
New
Material:
Hard Alloy / Carbide Steel
Hardness:
Hardness Up To Hra90 Or More
Polish:
Precision Grinding
Advantage:
With High Rigidity And Hardness, Not Easy To Bend
Ransport Package:
Special Packing
Sample:
Available,Acceptable
Anti-bending:
2300n/Mm
Roughness Of Bore:
Ra0.1
Usage:
Coil Winding Machine,starter Stator Producing Machine,nittotu Winding Machine
Condition:
New
Coil Winding Nozzle Tungsten Carbide Porous Shaped

Coil Winding Nozzle - Tungsten Carbide Porous Shaped Nozzle Starter Stator Producing Machine

Coil Winding Nozzle - Tungsten Carbide

Product Features:
The product is made prcciscly of hard alloy and cnjoy the hardness up to HRA90. Two terminals

and inner hole are all receive mirror surface treatment to ensure cnameled wire makes no scrape.

Can be produced in accordance with customer requirements!

Eliminate wire insulation film damage, low friction resistance, stable wire tension.

The wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.



The Merits of Solid Tungsten Carbide Nozzles
Our wire guide nozzles in Solid Tungsten Carbide offer the following advantages:
  • Thoroughly mirror finished wire entrance, exit and bore surfaces
  • Superior rigidity
  • Capable of being fabricated to complex geometries
  • Concentricity held to within 0.01 mm



Superior and inferior quality of alloy wire nozzle:

1 Nozzle orifice finish:
At the junction of its location, hole and arc angle, by visual method is unable to see, only with the

high magnification magnifier to observe the side, if there is an obvious mark junction hole and

transition arc angle, then the result is brought about by it scratch the enameled wire, if the quality

of the nozzle, at the junction of the inner hole and the arc angle it is a natural excessive, no transfer

of marks.

2 In the hole:
It is the quality of the product is also very crucial in the process of product winding in the inner hole

of the enameled wire is in the mouth of the online beating state, if the internal hole grinding processing

is not good, so the scraped line and then the inevitable worth to remind is, now on the market a lot in

hole alloy wire mouth is without grinding precision or simple rough machining.
3 Hole size precision:
Precision machining line mouth, its inner hole accuracy can be controlled within 0.01mm, if the hole

size is greatly small, break phenomenon often occurs, even the winding insulation failure or interturn

short circuit is not hard to explain why.

4 Installation size precision

According to the consistency of the packing size is necessary, if it is hard to put into a small equipment fixture, it is easy to fall out of fixture and influence adjustment precision.

5 head and tail shape:
R line shape is a key part of the R mouth of the head and tail, R is too large or too small will influence

the quality of products and can withstand the tension.





Nozzle Drawings for example :

Coil Winding Nozzle Tungsten Carbide Porous Shaped 0



Above is just for example all size can be customized according to customer’s special dimensins drawing requirements .

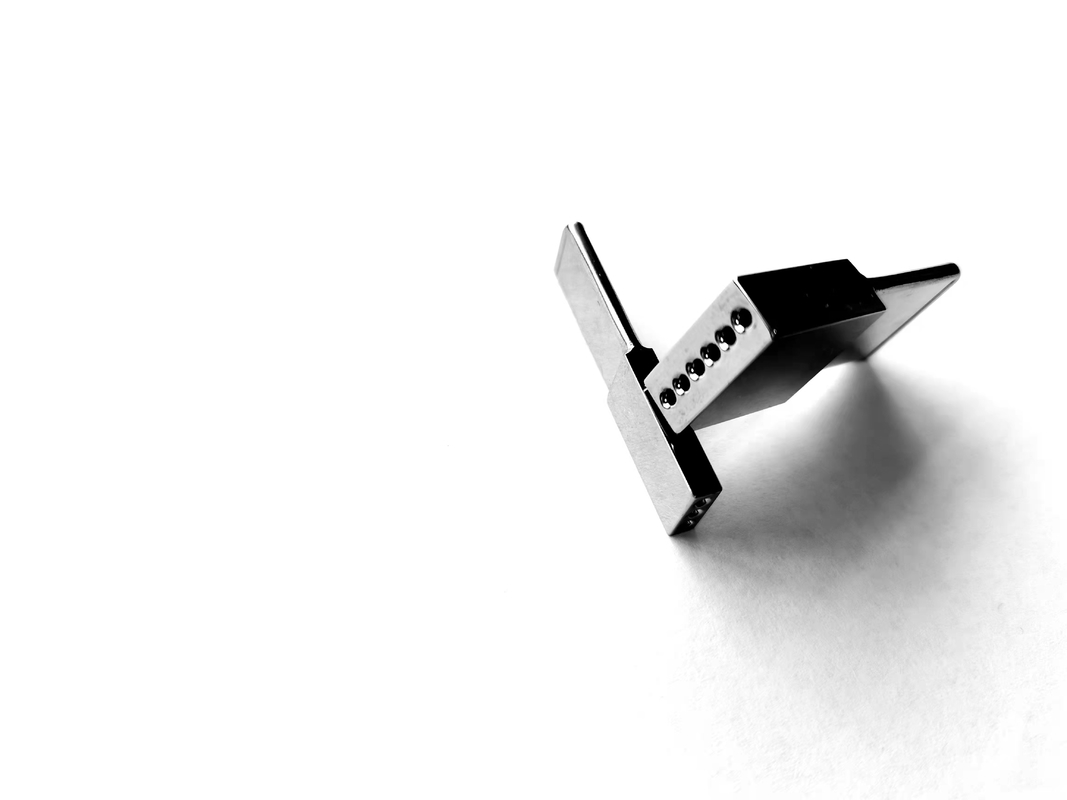

Picture show :
