Auto Coil Winding Machine Wire Guide Ruby Nozzle Stainless Steel With Winding Needles

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Model Number: TB0505-3015-3015

Payment & Shipping Terms

Minimum Order Quantity: 40pcs

Price: US$8-US$15 per pcs

Packaging Details: Carton with box/foam

Delivery Time: 3-7 working days

Payment Terms: T/T, Western Union Paypal

Supply Ability: 20000 pcs per month

Get Best Price
Highlight:

Auto Coil Winding Nozzle

,

Winding Needles Stainless Steel Nozzle

,

Wire Guide Ruby Nozzle

Materials:
Stainless Stell And Process Ruby
Function:
Protect Enameled-Wire
Roughness Of Bore:
Above Ra0.025
Polish:
Precision Grinding
Work Limit:
D1>0.3mm
Ruby Nozzle Roughness Of Bore:
Ra 0.1
HS Code:
8479909090
Suitable For Use:
Wire Winding Of Fine Coil And Thin Coil
Ruby Nozzle Weight:
40 PCS 0.5kg
Ruby Nozzle Price:
Factory Direct
Materials:
Stainless Stell And Process Ruby
Function:
Protect Enameled-Wire
Roughness Of Bore:
Above Ra0.025
Polish:
Precision Grinding
Work Limit:
D1>0.3mm
Ruby Nozzle Roughness Of Bore:
Ra 0.1
HS Code:
8479909090
Suitable For Use:
Wire Winding Of Fine Coil And Thin Coil
Ruby Nozzle Weight:
40 PCS 0.5kg
Ruby Nozzle Price:
Factory Direct
Auto Coil Winding Machine Wire Guide Ruby Nozzle Stainless Steel With Winding Needles

Ruby Tipped Winding Nozzle

We manufacture the Winding Nozzle for the Coil Winding Machines. A smooth geometry

from the inside hole to the tip is required for avoiding damage to the winding wire.

Custom configurations in the designing and manufacturing of the Winding Nozzle are also

accommodated.



Description of winding machine ruby tipped nozzle diamond nozzle (winding nozzle)
Ruby Nozzles also call wire guide tubes,wire guide eyelets,wire guide needles.It is used on coil
winding machines and cable machines for wire guide.it is made of stainless steel and ruby
by precise processing and combination.The rigidity of ruby is above than level 9 and is just
less than that of diamond. Ruby tipped coil winding nozzle guide is a single crystal and can be
made with high brightness and cleanness. It can effectively protect paint film and ling term continual
work. In using ,it with very low damage for the enameled wire. Combined with good toughness
characteristics of stainless steel, finely processed mosaic combination, more than twice lifetime
than the tungsten carbide nozzle in the same environment using.





Key advantages of Ruby Tipped Coil Winding Nozzle:

1) High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.
2) Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.
3) Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Specification and description:



Auto Coil Winding Machine Wire Guide Ruby Nozzle Stainless Steel With Winding Needles 0







Size List:


Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0 0.8 0.3 0.4
2 TB0403-2008-3007 30 7 2.0 0.8 0.3 0.4
3 TB0403-2508-1505 15 5 2.5 0.8 0.3 0.4
4 TB0403-2010-3510 35 10 2.0 1.0 0.3 0.4
5 TB0403-3010-1505 15 5 3.0 1.0 0.3 0.4
6 TB0403-3008-2504 25 4 3.0 0.8 0.3 0.4
7 TB0403-3008-3007 30 7 3.0 0.8 0.3 0.4
8 TB0403-3010-3015 30 15 3.0 1.0 0.3 0.4
9 TB0403-3010-4510 45 10 3.0 1.0 0.3 0.4
10 TB0605-3010-3005 30 5 3.0 1.0 0.5 0.6
11 TB0605-3012-3010 30 10 3.0 1.2 0.5 0.6
12 TB0605-3015-1505 15 5 3.0 1.5 0.5 0.6
13 TB0605-4020-3010 30 10 4.0 2.0 0.5 0.6
14 TB0505-3015-3015 30 15 3.0 1.5 0.5 0.5
15 TB0806-3015-3010 30 15 3.0 1.5 0.6 0.8
16 TB0806-2018-3507 35 7 2.0 1.8 0.6 0.8
17 TB0806-3015-3008 30 8 3.0 1.5 0.6 0.8
18 TB1008-4020-1505 15 5 4.0 2.0 0.8 1.0
19 TB0808-3000-4500 45 * 3.0 * 0.8 0.8
20 TB0808-3015-1409P 14 9 3.0 1.5 0.8 0.8






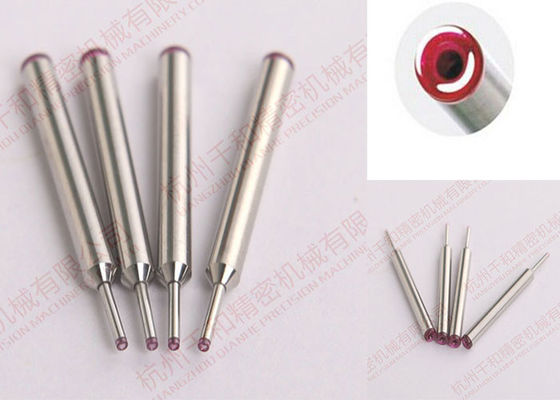

Picture show:

Auto Coil Winding Machine Wire Guide Ruby Nozzle Stainless Steel With Winding Needles 1



Auto Coil Winding Machine Wire Guide Ruby Nozzle Stainless Steel With Winding Needles 2



Advantage of our coil winding accessaries
1.Precise coil winding accessaries such as wire guide pulley, magnetic damper,

electric brake and nozzles.
2.Competitive price
3.Excellent quality of tension device and accessaries
4.Fast response speed
5.Professional tensioner engineering team
6.Good after-sales service
