Product Details
Place of Origin: HANGZHOU CHINA
Brand Name: QIANHE
Model Number: QH-MTC300S
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$85-US$500
Packaging Details: Carton with Foam
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 set per month
Tension Scope: |
14-400g |
Wire Diameter: |
0.06-.025mm |
PProduct Weight: |
0.55 Kg |
Type: |
Vertical Type |
Mertials: |
Alloy Resin |
Feature: |
Using Permanent Magnet |
Wire Speed: |
15m/s |
Stable Tension: |
±1%g |
Packaging Details: |
Carton With Foam |
Application: |
Coil Winding Machine Wire Tension Control |
Tension Scope: |
14-400g |
Wire Diameter: |
0.06-.025mm |
PProduct Weight: |
0.55 Kg |
Type: |
Vertical Type |
Mertials: |
Alloy Resin |
Feature: |
Using Permanent Magnet |
Wire Speed: |
15m/s |
Stable Tension: |
±1%g |
Packaging Details: |
Carton With Foam |
Application: |
Coil Winding Machine Wire Tension Control |
Magnetic Tensioner for full -automatic Winding Machine
Product Description:
Vertical Magnetic Tensioner
Product Category: Tensioner series
Products name -MTC Magnetic Tensioner
MTC Series Magnetic Tensioner is used on coil winding machine by using permanent magnet,
tension is generated to the damp wheel. The non-contact mechanism design provides stable,
consistence and precision tension to the wire. Excellence for both high and normal speed winding.
| Place of origin: | HAGNZHOU CHINA |
| Brand Name : | QIANHE |
| Model : | QH-MTC300S |
| Feature | Using Permanent Magnet |
| Application | CNC-Winding machine |
| Suit : | High and normal speed winding |
| Tension test condition | wire sppeding 5m/s refer roundness Bobbin |
| Products size | 100mm*140mm*32mm |
| Weight | 0.5kg |
| Minimum order quantity | 1 piece |
| Packing details | Carton with Foam |
| Dileryy time | 3-5 working days |
| Payment terms | T/T,Western Union ,Paypal |
| Supply ability | 5000 pcs per month |
| Customized | Non-Customized |
"QIANHE" 's tensioner have been widely used in domestic and overseas,on various of Transformers, inductors, motors, relays, automotive ignition coils, voice coils and camera most high-end manufacturer
of fully automatic winding machines and production line,over the years by virtue of high quality products and quality service won the praise of users,market occupancy increased year by year.
Specification :
| Products Series | Model | Tension Scope | Applied wire diameter | Tension Rod |
| (g) | (mm) | |||
| MTC Series (vertical type) | QH-MTCSS | 5-130 | 0.025-0.12 | TR-30# |
| QH-MTC300S | 14-400 | 0.06-0.25 | TR-31# | |
| QH-MTCS | 30-800 | 0.08-0.40 | TR-32# |
Hanging line diagram
Tensioner test conditions :
Line speed is 15M/S, instant start, stop the continuous line, stable tension in the positive
and negative 1%g.
Key features of Type MTC300S :

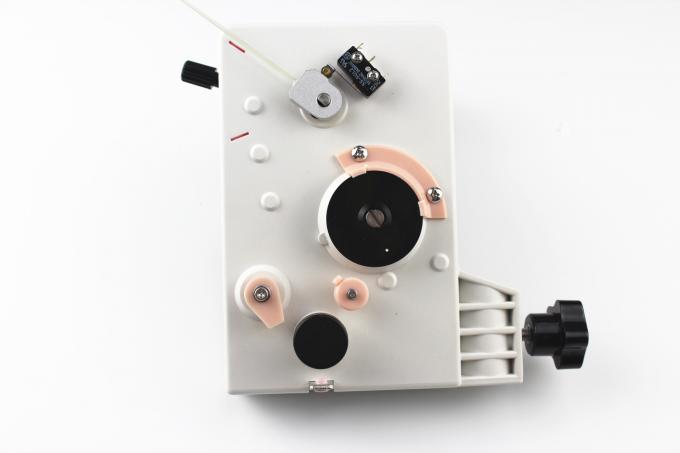

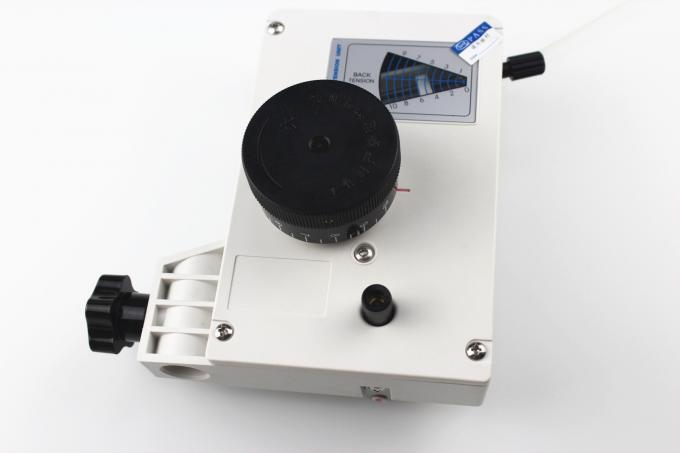

Picture show:
Tensioner packing
Why do you choose us?
1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of
experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,
delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many
customers are very happy to cooperate with us, because we can provide a more competitive
price as a factory.
3,The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified
can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before
the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
