|Wire:||0.08-0.40mm||Stallation:||Φ10 Mounting Stud|
|Wire Speed:||15m/s||Application:||Coil Winding Machine Wire Tension Control|
|Packaging:||Carton With Foam||Feature:||Using Permanent Magnet|
040mm Electronic Tensioner,
Mechanical Coil Winder Tensioner,
Mechanical Winding Tensioner
Motor Industry Inner Stator Winding Mechanical Tensioner Qh - Mtas Wire 0.08-.040mm
We are specicalized in coil winding mahince tensioners,
Such as Magnetic tensioner,electronic tensioner and servo tensioner
with high quality and the most competitive price in china.
Our wire tensioners can be used on almost any brand of coil winding machine,
and most models can be fitted with a microswitch for detection of broken winding wires
on request .
The MTA series is produced by the change of the torque of the magnetic field,
which is produced by the change of the torque, which has no mechanical friction,
so it can generate stable tension for a long time, and the precision can be guaranteed
The freedom of the adjustment of the tension, can be adapted to the side of the
skeleton of the winding and sharp changes in the speed of the winding around the wire,
will not produce a broken wire. When the broken wire and the wire rod are used up,
the detection device is informed by the disconnection detection device of the equipment,
and the winding machine automatically stops. This series of tension device is an upgraded
version of mechanical series, the use of double break alarm mechanism, the internal
increase of the photoelectric detection of broken wire alarm,
and the use of indicator light shows that the overall structure is more scientific and firm.
Tensioner test conditions :
Wire speed is 15M/S, instant start, stop the continuous line, stable tension in the positive
and negative ± 1%g.
Key features of Type MTAS :
Full-automatic coil Winding Machine Wire Tension Control
Match with different winding machine such Nittoku ,Tanac ,Hongfa ,YEOU YUAN ,
and all the other automatic Winding machine production line of China suppliers .
Hanging line diagram
|Products Series||Model||Tension Scope||Applied wire diameter||Tension Rod|
|MTA Series (horizontal type)||QH-MTASS||5-130||0.025-0.12||TR-30#|

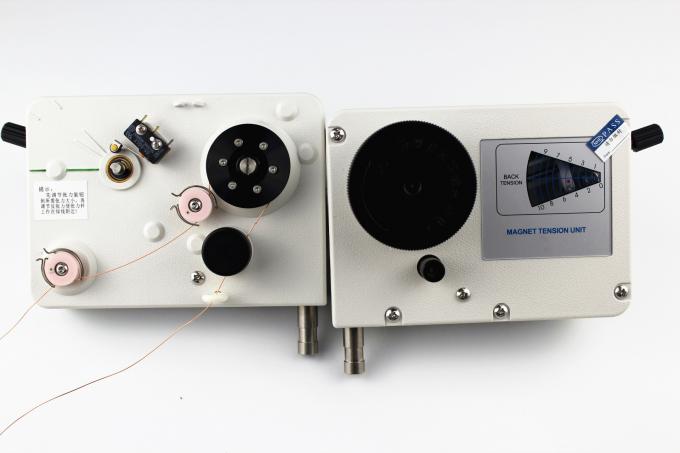

QH-MTAS front side
QH-MTAS back side
Different models of QH-MTA Series
All products have to pass strict inspection before packing !
Advantages of this Coil Winding Magnetic Wire Tensioner
1. Excellence for both high and normal speed winding.
2. Stable and consistence tension control
3. Non wire breakage
4. longer service life and competive prices
