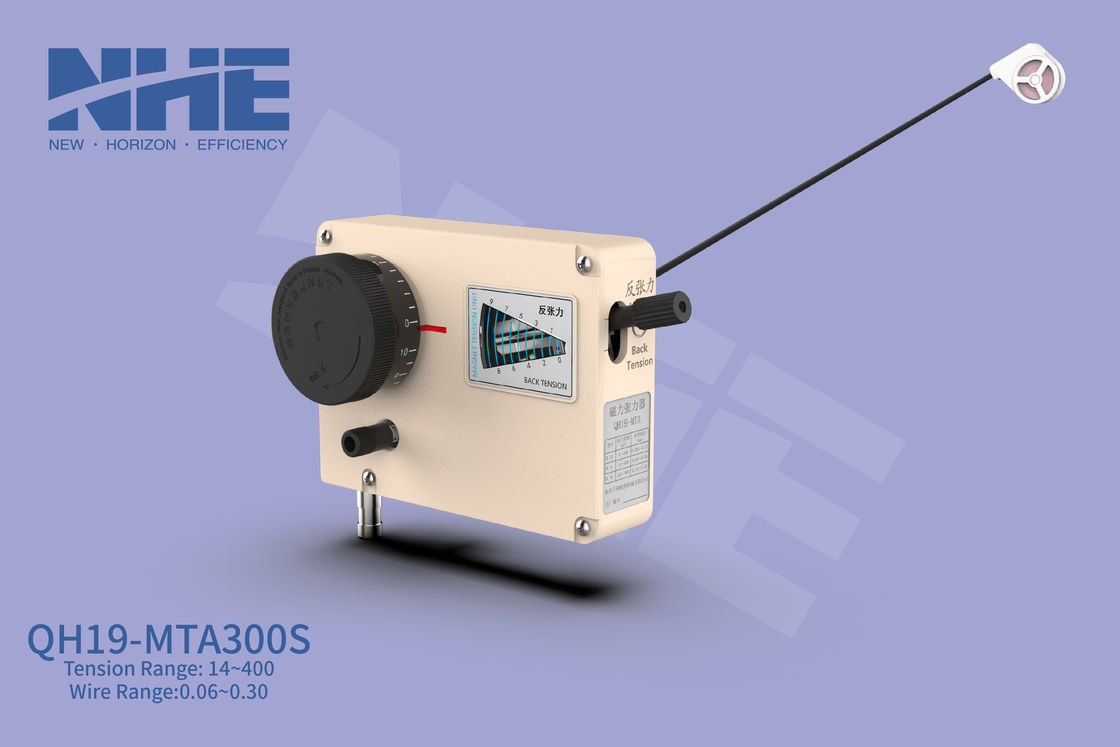

0.06-0.30mm Fine Wire Magnetic Tensioner

0.06-0.30mm Fine Wire Magnetic Tensioner
0.06-0.30mm Fine Wire Magnetic Tensioner 0.06-0.30mm Fine Wire Magnetic Tensioner 0.06-0.30mm Fine Wire Magnetic Tensioner 0.06-0.30mm Fine Wire Magnetic Tensioner

Large Image :  0.06-0.30mm Fine Wire Magnetic Tensioner

Product Details:
Place of Origin: HANGZHOU CHINA
Brand Name: QIANHE
Model Number: QH19-MTA300S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$100-US$500
Packaging Details: Carton with Foam
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 set per month
Detailed Product Description
Place Of Origin: Hangzhou China Color: White And Beige
Package Size: 210mmX150mmX160mm PProduct Weight: 0.60 Kg
Mertials: Alloy Resin Function: Tension Control
Wire Speed: 10m/s Delivery: By Air
High Light:

Fine Wire Magnetic Tensioner

,

Magnetic Fine Wire Tensioner

,

0.30mm Magnetic Tensioner



Hangzhou Qianhe Precision Machinery Co.,Ltd



 Qianhe  is a professional manufacturer for coil winding tensioner,  We offer  Magnetic tensioner and servo tensioner

 for coil winding machine with best quality and the most  competitive price in china.



Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance.

Stabilized tensioner improves winding problems and enhances productivity.

For example, stabilized tensioner causes no breaking of wire, raises operation rate,

secures the value of resistance, and increases credibility of the product.

Perfect layer winding leads to material cost cutting and easy adjustment.

Therefore, time and cost for machine maintenance can be decreased.



Key advantages of Magnetic wire tensioners:



These magnetic tensioners use a device containing a permanent magnet as a

 non-contact method of generating a variable resistance to rotation of the main

wheel of the tensioner, thus maintaining wire tension at the set value for longer

periods than their mechanical counterparts with greatly reduced requirement for

adjustment.

  • Polished ceramic eyelets and guide rollers at each point of contact protect   the  insulating enamel from mechanical damage.
  • The performance of these magnetic wire tensioners is exceptional given the low    cost,
  •  providing outstanding value for money.
  • Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

Specification :



Products Series  Model Tension Scope Applied wire diameter Tension Rod
(g) (mm)
MTA Series      (horizontal type) QH19-MTASS 4-100 0.025-0.12 CX-2#
QH19-MTA300S 14-400 0.06-0.30 CX-4#
QH19-MTAS 50-900 0.1-0.50 CX-6#
QH19-MTAM 300-1500 0.25-0.80 CX-8#
QH19-MTAL 500-2000 0.40-1.00 CX-8#


Hanging line diagram



0.06-0.30mm Fine Wire Magnetic Tensioner 0



Tensioner test conditions :

Wire speed is 10M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.



Key features of Type MTC300S :

  • Tension Scope :14-4000g
  • Applied wire diameter : 0.06-0.30
  • Tension Rod :  CX-4#

Picture show:

0.06-0.30mm Fine Wire Magnetic Tensioner 1



0.06-0.30mm Fine Wire Magnetic Tensioner 2



0.06-0.30mm Fine Wire Magnetic Tensioner 3



0.06-0.30mm Fine Wire Magnetic Tensioner 4



                                                             Coil Winding Machine Tensioner
