Tungsten Carbide Coil Winding Nozzle For Coil Precision Grinding

Very good business man. I will be back soon. He is quick to handle any problems you may have so feel safe to buy.

—— Jorge

The goods is better than my another supplier. Will give you more orders. Thanks !

—— Kylen Pillay

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Vikas

I'm Online Chat Now

Tungsten Carbide Coil Winding Nozzle For Coil Precision Grinding

Tungsten Carbide Coil Winding Nozzle For Coil Precision Grinding
Tungsten Carbide Coil Winding Nozzle For Coil Precision Grinding
video play

Large Image :  Tungsten Carbide Coil Winding Nozzle For Coil Precision Grinding

Product Details:
Place of Origin: Hangzhou China
Brand Name: QIANHE
Model Number: CW0606-2012-3510
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: US$6.5-US$15 PER PCS
Packaging Details: Carton with box /foam
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 50000 pcs per month
Detailed Product Description
Material: Tungsten Carbide Hardness: Over HRC90
Anti Bending degree: Over 2300N/mm Polish: Precision Grinding
Roughness Of R Place: Ra 0.025 Surface: Polished,grinded
Shape: Customized,cross-shaped Groove Thread Carbide Nozzles Sample: Acceptable
High Light:

Tungsten Carbide Coil Winding Nozzle


Precision Grinding Winding Nozzle


Precision Grinding Coil Winding Nozzle

Carbide Nozzle / Winding Needles / Wire Guide Pin for Coil / Transformer winding machine CW0606-2012-3510


Coil Winding Nozzle - Tungsten Carbide

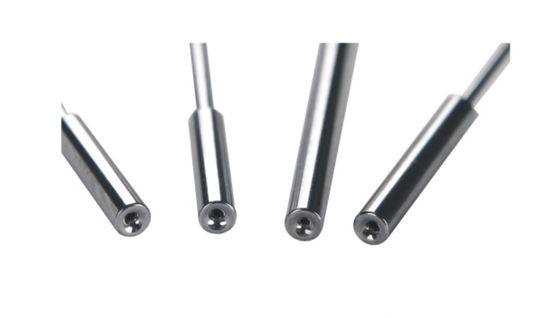

Tungsten Carbide nozzle is used on coil winding machine.it is made precisely of super

hard alloy and enjoys the hardness over HRA90.degree while the anti bending degree

reached over 2300N/mm.Two terminals and the inner and outlet are all receive mirror

surface treatment to ensure enameled wire makes no scrape. High hardness, resistance

to flexure, block and impact .



The Merits of Solid Tungsten Carbide Nozzles


Our wire guide nozzles in Solid Tungsten Carbide offer the following advantages:

  • Thoroughly mirror finished wire entrance, exit and bore surfaces
  • Superior rigidity
  • Capable of being fabricated to complex geometries
  • Concentricity held to within 0.01 mm

Key advantages of Tungsten Carbide Nozzle :

1. High Wear Resistance

 This is assured by the choice of materials for wear elements possessing. Hardness

 Value: 1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.

2. Scratch-Proofing

  Eliminate wire insulation film damage, low friction resistance, stable wire tension.

The wireguiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 4 micro inches Ra or better, material permit.
3. Straightness and Stiffness

Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating. In plain terms, the wire should exit from the nozzle

concentric to the locating, To within 0.02 mm, with or without load. A geometric

 Characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4. Precise Exit Radii

 Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement,

shown at upper right.

Specification and description:


The  measurements drawing as follow please confirm your nozzles size according

 to your winding machine and coil products.

Tungsten Carbide Coil Winding Nozzle For Coil Precision Grinding 0



Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 W0202-2005-1505 15  2.0  0.5  0.2  0.2
2 W0202-2000-3300 33  * 2.0  * 0.2  0.2
3 W0202-3010-3015 30  15  3.0  1.0  0.2  0.2
4 W0202-3006-3010 30  10  3.0  0.6  0.2  0.2
5 W0202-3015-3015 30  15  3.0  1.5  0.2  0.2
6 W0202-3007-3508 35  3.0  0.7  0.2  0.2
7 W0303-3008-3012P 30  12  3.0  0.8  0.3  0.3
8 W0303-3012-3519 35  19  3.0  1.2  0.3  0.3
9 W0303-3008-4506 46  3.0  0.8  0.3  0.3
10 W0303-3020-3515 35  15  3.0  2.0  0.3  0.3
11 W0303-0800-3500 35  * 0.8  * 0.3  0.3
12 W0303-3018-4018 40  18  3.0  1.8  0.3  0.3
13 W0404-3010-3009 30  3.0  1.0  0.4  0.4
14 W0404-3007-4528 45  28  3.0  0.7  0.4  0.4
15 W0505-3012-4506T 45  3.0  1.2  0.5  0.5
16 W0606-3012-3520 35  20  3.0  1.2  0.6  0.6
17 W0606-3016-4010T 40  10  3.0  1.6  0.6  0.6
18 W0808-3018-3518 35  18  3.0  1.8  0.8  0.8
19 W0808-3018-3010 30  10  3.0  1.8  0.8  0.8
20 W1212-3022-3010 30  10  3.0  2.2  1.2  1.2

All size can be customized according to customer requirements
