HRC90 Hardness Tungsten Carbide Nozzle for coil winding machine , Over 2300N/mm

Product Details

Place of Origin: HANGZHOU CHINA

Brand Name: QIANHE

Model Number: CW0303-1508-2710

Payment & Shipping Terms

Minimum Order Quantity: 20 pcs

Packaging Details: Carton with box /foam

Delivery Time: 3-7 working days

Payment Terms: T/T, Western Union

Supply Ability: 50000 pcs per month

Get Best Price
Highlight:

wire guide tube

,

tungsten carbide tubing

Material:
Tungsten Carbide Steel
Hardness:
HRC90
Anti Bending degree:
Over 2300N/mm
Application:
CNC Automatic Coil Winding Machine
Roughness Of R Place:
Ra0.025
Roughness Of Bore:
Ra0.1
Transport Package:
20PCS/Box
Precision:
High Precision
Function:
Abrasion Resistance
Customized:
Customized
HS Code:
8479909090
Work Limit:
D1>0.2mm D1>0.7mm
Material:
Tungsten Carbide Steel
Hardness:
HRC90
Anti Bending degree:
Over 2300N/mm
Application:
CNC Automatic Coil Winding Machine
Roughness Of R Place:
Ra0.025
Roughness Of Bore:
Ra0.1
Transport Package:
20PCS/Box
Precision:
High Precision
Function:
Abrasion Resistance
Customized:
Customized
HS Code:
8479909090
Work Limit:
D1>0.2mm D1>0.7mm
HRC90 Hardness Tungsten Carbide Nozzle for coil winding machine , Over 2300N/mm



Tungsten Carbide Auto Parts Coil Winding Wire Guide Motor Nozzle





Coil Winding Nozzles / Wire Guide Tubes With Precision Grinding



We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil

winding nozzle for Nittoku coil  winding machine, CNC Automatic coil winding machine

 and other brand coil winding machines,.

There is description and features about the Tungsten Carbide Nozzle as following:

Tungsten Carbide nozzle is used on coil winding machine.it is made precisely of super

hard alloy and enjoys the hardness over HRA90.degree while the anti bending degree

reached over 2300N/mm.Two terminals and the inner and outlet are all receive mirror

surface treatment to ensure enameled wire makes no scrape. High hardness, resistance

to flexure, block and impact .


Key advantages of Tungsten Carbide Nozzle :

1. High Wear Resistance

 This is assured by the choice of materials for wear elements possessing. Hardness

 Value: 1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.

2. Scratch-Proofing

  Eliminate wire insulation film damage, low friction resistance, stable wire tension.

The wireguiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 4 micro inches Ra or better, material permit.
3. Straightness and Stiffness

Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating. In plain terms, the wire should exit from the nozzle

concentric to the locating, To within 0.02 mm, with or without load. A geometric

 Characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4. Precise Exit Radii

 Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement,

shown at upper right.


Specification and description:





Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 W0202-2005-1505 15  2.0  0.5  0.2  0.2
2 W0202-2000-3300 33  * 2.0  * 0.2  0.2
3 W0202-3010-3015 30  15  3.0  1.0  0.2  0.2
4 W0202-3006-3010 30  10  3.0  0.6  0.2  0.2
5 W0202-3015-3015 30  15  3.0  1.5  0.2  0.2
6 W0202-3007-3508 35  3.0  0.7  0.2  0.2
7 W0303-3008-3012P 30  12  3.0  0.8  0.3  0.3
8 W0303-3012-3519 35  19  3.0  1.2  0.3  0.3
9 W0303-3008-4506 46  3.0  0.8  0.3  0.3
10 W0303-3020-3515 35  15  3.0  2.0  0.3  0.3
11 W0303-0800-3500 35  * 0.8  * 0.3  0.3
12 W0303-3018-4018 40  18  3.0  1.8  0.3  0.3
13 W0404-3010-3009 30  3.0  1.0  0.4  0.4
14 W0404-3007-4528 45  28  3.0  0.7  0.4  0.4
15 W0505-3012-4506T 45  3.0  1.2  0.5  0.5
16 W0606-3012-3520 35  20  3.0  1.2  0.6  0.6
17 W0606-3016-4010T 40  10  3.0  1.6  0.6  0.6
18 W0808-3018-3518 35  18  3.0  1.8  0.8  0.8
19 W0808-3018-3010 30  10  3.0  1.8  0.8  0.8
20 W1212-3022-3010 30  10  3.0  2.2  1.2  1.2

Above is just for example all size can be customized according to customer’s special dimensins drawing requirements .





The the measurements drawing as follow please confirm your nozzles size according

 to your winding machine and coil products.



HRC90 Hardness Tungsten Carbide Nozzle for coil winding machine , Over 2300N/mm 0





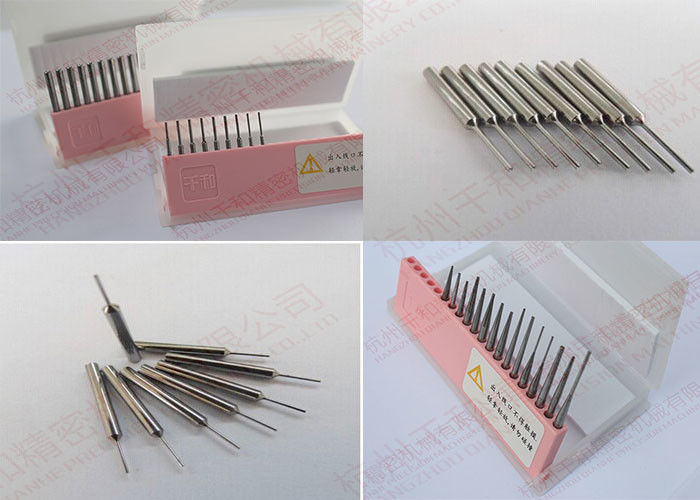

Picture show :



HRC90 Hardness Tungsten Carbide Nozzle for coil winding machine , Over 2300N/mm 1
