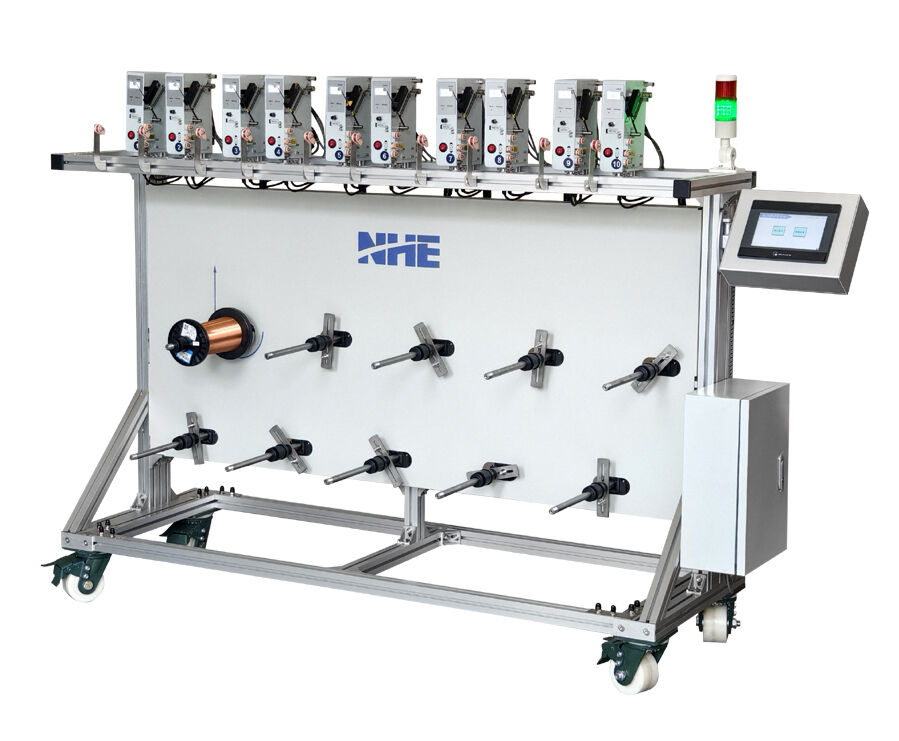

Servo Wire Feeding Rack

Product features:

1,The motor of the servo tensioner is separated from the tensioner structure.

     The motor is connected to the bobbin and directly drives the bobbin to feed the wire.
2,Ideal for winding flat or irregularly shaped wires, ultra-fine wires,and other specialty materials.
3,Low wire speed and stable tension.
4,Precise tension control with stable payoff and automatic regulation ensures smooth winding without damaging the wire.
     The constant linear speed during rewinding prevents breakage, slack, or looseness.
5,Servo control ensures stable operation and user-friendly handling;
     variable frequency speed regulation guarantees smooth, jam-free performance.
     One-button control reduces labor costs and is ideal for long-term continuous production.
6,Customized according to customer requirements.

Communication application of servo tensiometer

Main Function

This product is a master - slave communication system specifically developed for our company's servo tensioners.

The upper - level machines (such as winding machine PLCs, touch screens, etc.) can use this product to read the tension values of the tensioners in real - time,

and simultaneously set the parameters of the tensioners online. It also features faster communication speed, better stability, and higher real - time performance.
The "Servo Tensioner Communication Box" has one RS485 and one Ethernet interface for communication with the winding machine PLC or touch screen.

It has four RS485 interfaces and one CAN interface for communication with the tensioners. The RS485 can connect up to 32 servo tensioners simultaneously,

and the CAN can connect up to 64 servo tensioners simultaneously for real - time data exchange. This application lays the foundation for a smart winding factory.

Main Parameters

1. Input voltage: DC 24V
2. Working current: Max 0.3A
3. Communication interface: RS485×5 groups (1 group connected to PLC,
4 groups connected to tensioner)
   LAN × 1 (connected to PLC)
   IO × 6-way (connected to PLC)
  CAN × 1 (connected to tensioner)
4. Alarm interface: NC, NO, COM
5. Baud rate: 9600, 19200, 38400, 76800, 115200
