Straightness and Stiffness Coil Winding Nozzles - Ruby Tipped Wire Guide Nozzle

Product Details

Place of Origin: Hangzhou China

Brand Name: QIANHE

Model Number: TB0605-3010-3510

Payment & Shipping Terms

Minimum Order Quantity: 20pcs

Price: US$8-US$15 per pcs

Packaging Details: Carton with box/foam

Delivery Time: 3-7 working days

Payment Terms: T/T, Western Union

Supply Ability: 20000 pcs per month

Get Best Price
Highlight:

Tungsten Carbide Nozzle

,

Ruby Nozzle

Materials:
Stainless Stell And Process Ruby
Place Of Origin:
Hangzhou China
Application:
Enameled Copper Wire
Processing Limit:
D1≥ 0.3mm
Polish:
Precision Grinding
Roughness Of Bore:
Ra0.025
Export Markets:
Global
Production Capacity:
50000 PCS/Month
Materials:
Stainless Stell And Process Ruby
Place Of Origin:
Hangzhou China
Application:
Enameled Copper Wire
Processing Limit:
D1≥ 0.3mm
Polish:
Precision Grinding
Roughness Of Bore:
Ra0.025
Export Markets:
Global
Production Capacity:
50000 PCS/Month

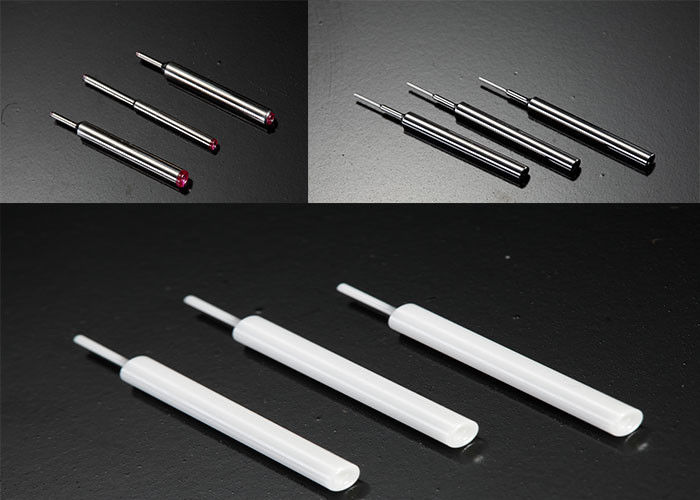

Straightness and Stiffness Coil Winding Nozzles - Ruby Tipped Wire Guide Nozzle

Ruby Nozzle guide (Ruby tipped coil winding nozzle)
Ruby Nozzle is made of two main parts, stainless steel and the processed ruby.

It has been widely used in CNC automatic winding machine



There is description and features about Ruby tipped coil winding nozzle as following:

Ruby tipped coil winding nozzle guides:



(Ruby Nozzles) also call wire guide tubes,wire guide eyelets,wire guide needles.It is

used on coil winding machines and cable machines for wire guide.it is made of stainless

steel and ruby by precise processing and combination.The rigidity of ruby is above than

 level 9 and is just less than that of diamond.Ruby tipped coil winding nozzle guide is a

single crystal and can be made with high brightness and cleanness. It can effectively

protect paint film and ling term continual work. In using ,it with very low damage for the

enameled wire. Combined with good toughness characteristics of stainless steel,

finely processed mosaic combination, more than twice lifetime than the tungsten

carbide nozzle in the same environment using .



Key advantages of Ruby Tipped Coil Winding Nozzle :

1)High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value

1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless

steel for structural supports, not wear-bearing.
2)Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The

wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of

2 -4 micro inches Ra or better, material permit.
3)Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible

 with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle

 concentric to the locating? To within 0.02 mm, with or without load. A geometric

characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4) Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one

 coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital

measurement, shown at upper right.



Specification and description:



Straightness and Stiffness Coil Winding Nozzles - Ruby Tipped Wire Guide Nozzle 0

                                                    Ruby Nozzle Drawings

Size List:



Part.No. Model Specifications(mm)
L L1 D D1 d1 d2
1 TB0403-2008-1505 15 5 2.0  0.8  0.3  0.4
2 TB0403-2008-3007 30 7 2.0  0.8  0.3  0.4
3 TB0403-2508-1505 15 5 2.5  0.8  0.3  0.4
4 TB0403-2010-3510 35 10 2.0  1.0  0.3  0.4
5 TB0403-3010-1505 15 5 3.0  1.0  0.3  0.4
6 TB0403-3008-2504 25 4 3.0  0.8  0.3  0.4
7 TB0403-3008-3007 30 7 3.0  0.8  0.3  0.4
8 TB0403-3010-3015 30 15 3.0  1.0  0.3  0.4
9 TB0403-3010-4510 45 10 3.0  1.0  0.3  0.4
10 TB0605-3010-3005 30 5 3.0  1.0  0.5  0.6
11 TB0605-3012-3010 30 10 3.0  1.2  0.5  0.6
12 TB0605-3015-1505 15 5 3.0  1.5  0.5  0.6
13 TB0605-4020-3010 30 10 4.0  2.0  0.5  0.6
14 TB0505-3015-3015 30 15 3.0  1.5  0.5  0.5
15 TB0806-3015-3010 30 15 3.0  1.5  0.6  0.8
16 TB0806-2018-3507 35 7 2.0  1.8  0.6  0.8
17 TB0806-3015-3008 30 8 3.0  1.5  0.6  0.8
18 TB1008-4020-1505 15 5 4.0  2.0  0.8  1.0
19 TB0808-3000-4500 45 * 3.0  * 0.8  0.8
20 TB0808-3015-1409P 14 9 3.0  1.5  0.8  0.8



 Pictures Show :

Straightness and Stiffness Coil Winding Nozzles - Ruby Tipped Wire Guide Nozzle 1

Straightness and Stiffness Coil Winding Nozzles - Ruby Tipped Wire Guide Nozzle 2

                                                                            Ruby Nozzle

Straightness and Stiffness Coil Winding Nozzles - Ruby Tipped Wire Guide Nozzle 3

                                                              Ruby Nozzle Inner package
