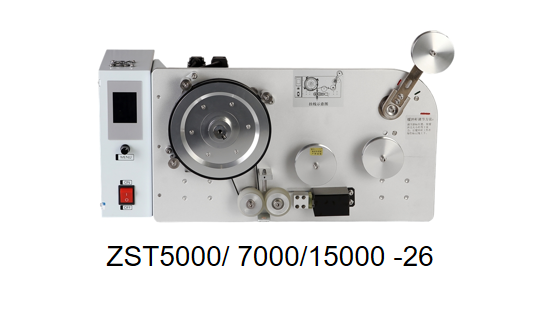

ZST Servo Tensiometer (multi tension)

Name: ZST Servo Tensiometer (multi tension)
Brand: HANGZHOU QIANHE PRECISION MACHINERY CO.,LTD
SKU: ZST7000-26 Servo Tensiometer
Price: 1,100.00 USD
Availability: InStock

Product Details

Place of Origin: Zhejiang • China

Brand Name: Qianhe Precision Machinery Co., Ltd.

Model Number: ZST7000-26 Servo Tensiometer

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $1000~1200dollar

Packaging Details: Carton with foam

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 2000 sets per month

Get Best Price

Product Details

Product Description

Highlight:

Color:	Light Gray Metal	Power Supply:	DC72V
Rated Power:	850W	Wire Speed:	7m/S
Tension Range:	1000-7000gf	Wire Range:	0.60~1.20mm
Tension Displ:	YES	Tension Stage:	Eight
Casing:	Metal	Feature:	Feed Wire Automaticly

Color:	Light Gray Metal
Power Supply:	DC72V
Rated Power:	850W
Wire Speed:	7m/S
Tension Range:	1000-7000gf
Wire Range:	0.60~1.20mm
Tension Displ:	YES
Tension Stage:	Eight
Casing:	Metal
Feature:	Feed Wire Automaticly

ZST Servo Tensiometer (multi tension)

1. Wide tension range. The maximum tension of this series can reach 15kgf.

2. It adopts the principle of servo motor torque closed - loop control. The servo motor actively feeds the wire; it has a function of automatically retracting the wire when the motor rotates in reverse.When the output tension is less than the tension input on the display screen, the motor rotates in reverse.

3. It cancels the traditional spring and rod tension structure and uses a high - power motor for direct drive to generate tension. The structure is simple and the response is higher.

4. Through 3 - way switch quantity signals, any of the 8 - stage tensions of this device can be called.Even without enabling the RS485 function,

multi - stage tension can still be controlled (Note: The single - time switching time is no more than 300ms).

5. The tensioner and the communication box are connected via CAN , which is more efficient and the signal is more stable and reliable. The communication box has Ethernet and Rs485 communication

functions, which can read the connected tensioner in real - time and perform parameter settings.

6. The ZST series servo tensioner needs to be used in conjunction with the "Servo Tensioner

Communication Box" developed by our company for networking and communication with the winding machine. Please request the "Instruction Manual".

Hang line diagram
