Product Details
Place of Origin: HANGZHOU CHINA
Brand Name: QIANHE
Model Number: QH-MTCS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US$85-US$500
Packaging Details: Carton with Foam
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 set per month
Application: |
Coil Winding Machine Wire Tension Control |
Wire Diameter: |
0.08-0.40mm |
Tension Scope: |
30-800g |
Type: |
Vertical Type |
Feature: |
Using Permanent Magnet |
Suit: |
High And Normal Speed Winding |
Packaging Details: |
Carton With Foam |
Wire Speed: |
15M/S |
Packing: |
Carton With Foam |
Shipment: |
By Air |
Application: |
Coil Winding Machine Wire Tension Control |
Wire Diameter: |
0.08-0.40mm |
Tension Scope: |
30-800g |
Type: |
Vertical Type |
Feature: |
Using Permanent Magnet |
Suit: |
High And Normal Speed Winding |
Packaging Details: |
Carton With Foam |
Wire Speed: |
15M/S |
Packing: |
Carton With Foam |
Shipment: |
By Air |
Hangzhou Qianhe Precision Machinery Co.,LTD
established in Nov 2006,
We are Corporate Enterprise specialized in design R&D and production .
After years of development, the company formed Large scale production of four series products. Coil Winding Tensioner, Coil Winding Nozzle , tooling fixture and Ceramic parts . "QIANHE" 's above products have been widely used in domestic and overseas,on various of Transformers, inductors, motors, relays, automotive ignition coils, voice coils and camera most high-end manufacturer of fully automatic winding machines and production line,over the years by virtue of high quality products and quality service won the praise of users,market occupancy increased year by year.
Coil Winding Machine Magnetic Tensioner (MTC series)
Detailed Product Description:
MTC Series Magnetic Tensioner is used on coil winding machine by using permanent magnet,
tension is generated to the damp wheel. The non-contact mechanism design provides stable,
consistence and precision tension to the wire. Excellence for both high and normal speed winding.
Specification :
| Products Series | Model | Tension Scope | Applied wire diameter | Tension Rod |
| (g) | (mm) | |||
| MTC Series (vertical type) | QH-MTCSS | 5-130 | 0.025-0.12 | TR-30# |
| QH-MTC300S | 14-400 | 0.06-0.25 | TR-31# | |
| QH-MTCS | 30-800 | 0.08-0.40 | TR-32# |
Tensioner test conditions :
Wire speed is 15M/S, instant start, stop the continuous line, stable tension in the positive
and negative ±1%g.
Key features of Type MTCSS :
Hanging line diagram
Picture show:

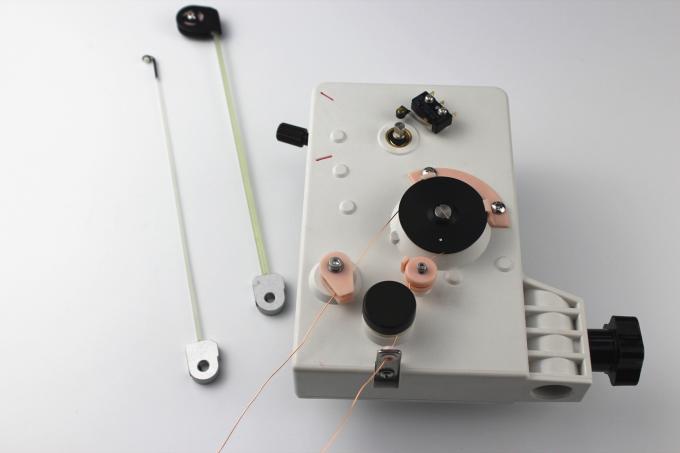

QH-MTCS
Wire passing
Assembly workshop
Winding tensioner packing
Why do you choose us?
1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of
experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,
delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many
customers are very happy to cooperate with us, because we can provide a more competitive
price as a factory.
3,The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified
can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before
the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
