Horizontal Magnet Wire Tensioner,
Multi Spindle Magnet Wire Tensioner,
Horizontal Coil Winding Wire Tensioner

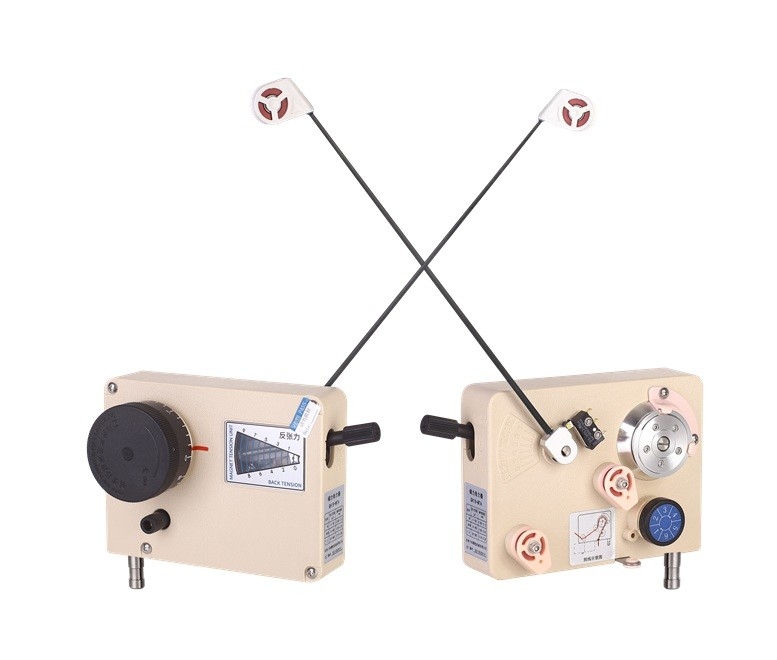

Magnet Wire Tensioner QH19-MTCS (0.1-0.5mm ,50-900g) For Mult Spidle Coil Winding Machine
MAGNETIC WIRE TENSIONERS - WITH TENSION RELEASE
Wire tension is one of the most critical parameters of any coil winding process, having an influence on product characteristics, particularly DC resistance of the wire. Wire tension control devices are therefore required to ensure constant wire tension as the wire speed changes during the coil winding process.
One major disadvantage of conventional mechanical wire tensioning devices is that the friction materials are in contact with each other, resulting in mechanical wear to the friction surfaces over. Therefore the wire tension may change from the set value during a series of production runs, requiring adjustment and the consequential disruption may cause loss of efficiency of the coil winding process.
Key advantages of Magnetic wire tensioners:
These magnetic tensioners use a device containing a permanent magnet as a non-contact method of generating a variable resistance to rotation of the main wheel of the tensioner, thus maintaining wire tension at the set value for longer periods than their mechanical counterparts with greatly reduced requirement for adjustment.
1. The quality of the magnetic tensioner is decided by two key parts: one is the magnet and the other is the bearing.
Magnet: Generally speaking, the more pairs of magnets you use, the better precision you will get. And Qianhe adopts up to 16 pairs of high strength permanent magnets. Then it can create damping through magnetic field transformation and torque changing. It has no mechanical friction as well so that it can generate long term and stable tension. On the other side, we adopt a high strength magnet so that the tension range of the tensioner can be greater and the application range can be wider.
* Bearing: Qianhe adopts NMB high quality bearing with smaller resistance and longer service life.
2. Groove design: this can effectively prevent jumping wire during production to ensure finished product quality.
3. Each set of product should be strictly tested before delivery to ensure absolute precision uniformity of the tension scale and tension degree value. When one winding machine requires multiple tensioners at the same time, this will be convenient for debugging and installation of the operators.
4. When the winding machine works normally, the tension should keep pace with back tension. Our tensioner is equipped with a manual nobble which can be used to adjust the value of back tension, so that the adjustment from the operators can be free. So the winding machine can be used for winding which should adapt to square frame or of which the winding speed changes rapidly without causing wire breaking.
5. The specification of the tension arm can be selected according to customer requirements.
|Describe||Model||Tension Range (g)||Wire Range (mm)||Tension Arm||Weight (kg)|
|MTA Series Horizontal Type||QH19-MTASS||4-100||0.025-.012||CX-1#,2#||0.5|
Wire pass drawing
