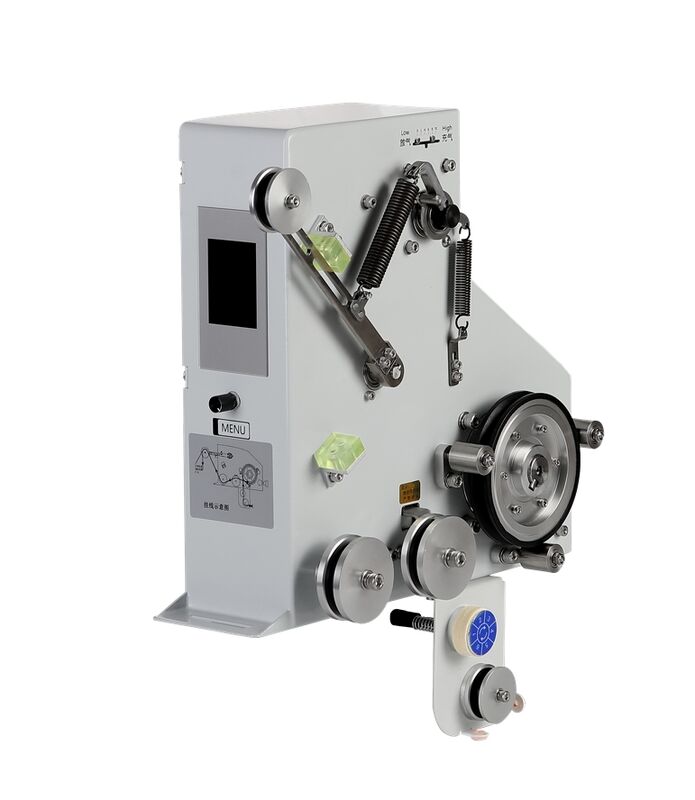

SFW Servo Tensiometer (multi tension)

Name: SFW Servo Tensiometer (multi tension)
Brand: HANGZHOU QIANHE PRECISION MACHINERY CO.,LTD
SKU: SFW2000/3000 Servo Tensiometer
Price: 700.00 USD
Availability: InStock

Product Details

Place of Origin: Zhejiang • China

Brand Name: Qianhe Precision Machinery Co., Ltd.

Model Number: SFW2000/3000 Servo Tensiometer

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $600~800 dollar

Packaging Details: Carton with foam

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 2000 sets per month

Get Best Price

Product Details

Product Description

Highlight:

Color:	Light Gray Metal	Power Supply:	DC48V
Rated Power:	200W、500W	Wire Speed:	9m/S、6m/S
Tension Range:	200~2000gf、500~4500gf	Wire Range:	0.20~1.20、0.35~1.35mm
Tension Displ:	YES	Tension Stage:	Eight
Casing:	Metal	Feature:	Feed Wire Automaticly

Color:	Light Gray Metal
Power Supply:	DC48V
Rated Power:	200W、500W
Wire Speed:	9m/S、6m/S
Tension Range:	200~2000gf、500~4500gf
Wire Range:	0.20~1.20、0.35~1.35mm
Tension Displ:	YES
Tension Stage:	Eight
Casing:	Metal
Feature:	Feed Wire Automaticly

SFW Servo Tensiometer (multi tension)

1. Preset tension segments: 8 tension stage can be preset through operations on the tensioner's local display screen, or via RS485 communication.

2. Multiple multi - stage tension switching modes:

•IO - based tension switching: The tensioner is equipped with 3 - way switch quantities, and the preset 8 - stage tension can be controlled and switched through (PLC) IO.

•Pneumatic - driven tension switching: Connecting an air source enables 2 - stage tension switching by inflating and deflating the internal

cylinder of the tensioner.

•The above two switching methods can be used in combination to achieve 16 - stage tension switching.

3. Multiple functional alarms: wire break alarm, fault alarm, tension upper/lower limit alarm functions.

4. RS485 networking communication enables integrated read - write control of all tensioners within the network, operations such as program

upgrades, and can also be connected to PLC via RS485 to achieve automated data collection and equipment integration.

5. Host - computer parameter adjustment: The tensioner is equipped with dedicated host - computer software for reading and writing internal

parameters of the tensioner,adjusting its working status and performance.
